Specifications
Frameset
| Frame | Alpha Gold Aluminium, internal cable routing, rack & mudguard mounts, post mount disc, kickstand mount, 135×5 mm QR |
|---|---|

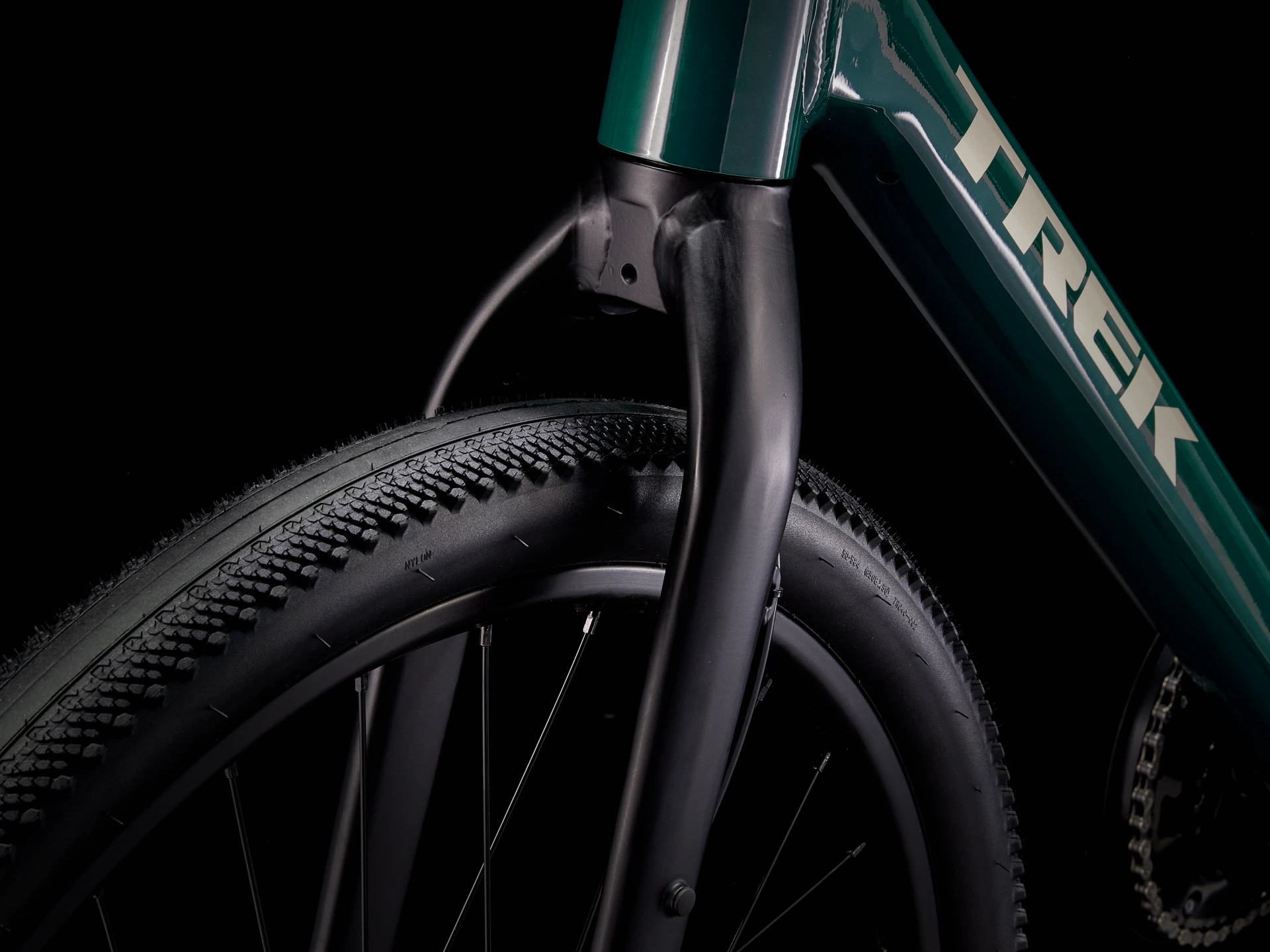

| Fork | Dual Sport alloy, internal brake routing, fender mounts, rack mounts, ThruSkew 5mm QR |
Wheels
| Hub front | Formula DC-20, alloy, 6-bolt, 5×100 mm QR |
|---|---|
| Skewer front | 139×5 mm bolt-on |
| Hub rear | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135×5 mm QR |
| Skewer rear | 152×5 mm QR |
| Rim | Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve |
| Spokes | 14 g stainless steel, black |
| Tyre | Bontrager GR0 Comp, wire bead, 60 tpi, 650×50 mm |
| Max tyre size | 27.5×2.00″ |

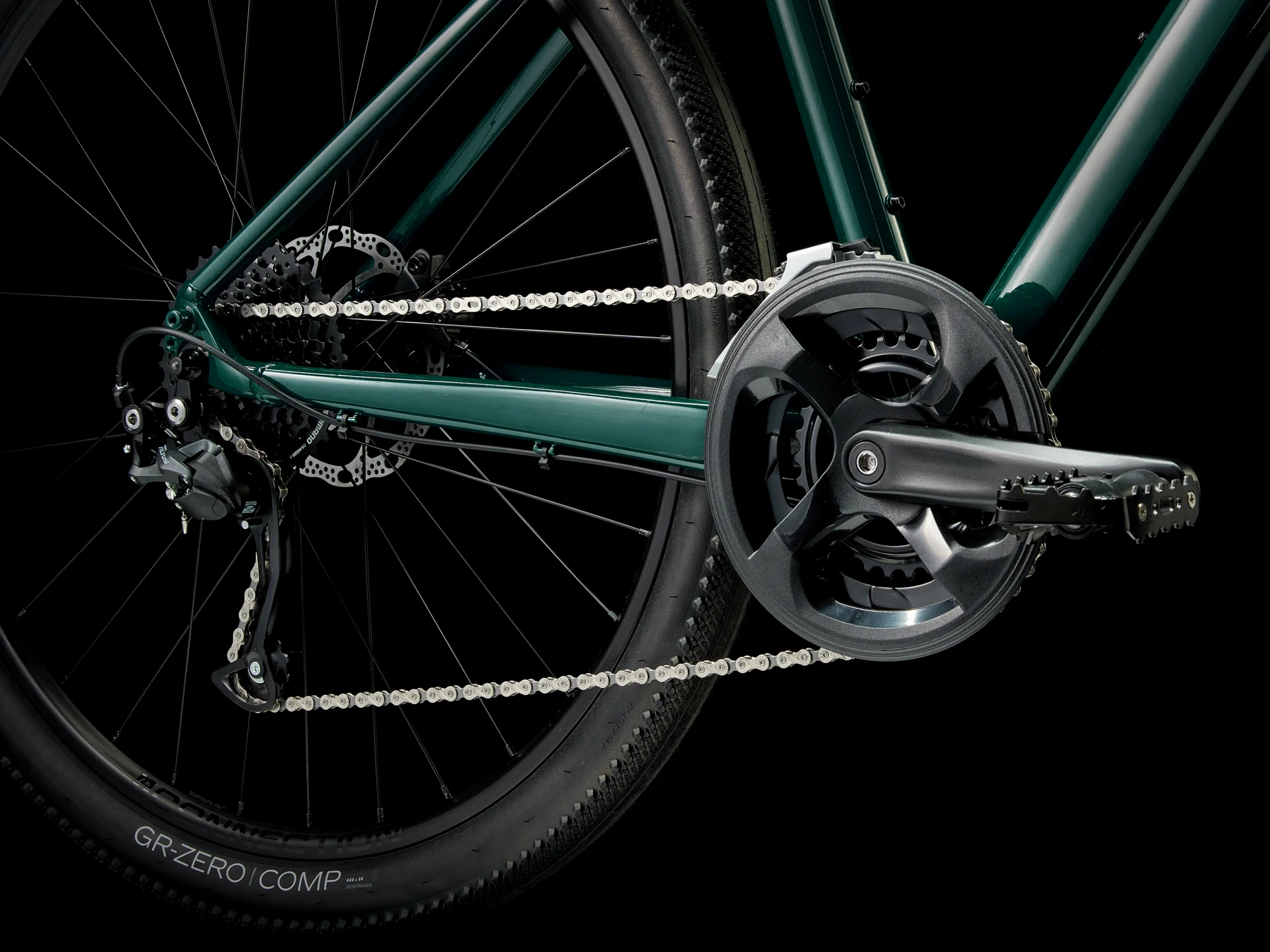

Drivetrain
| Shifter | Shimano Altus M2010, 9-speed |
|---|---|
| Front derailleur | Shimano Acera T3000, 34.9 mm clamp, top swing, dual pull |
| Rear derailleur | Shimano Altus M2000, long cage |
| Crank | Forged alloy, 46/30, chainguard, 170 mm length |
| Bottom bracket | Sealed cartridge, 68 mm |
| Cassette | Shimano HG200, 11-36, 9-speed |
| Chain | KMC X9 |
| Pedal | Wellgo nylon body, alloy cage |
| Max. chainring size | 1x: 42T, 2x/3x: 48T |
Components

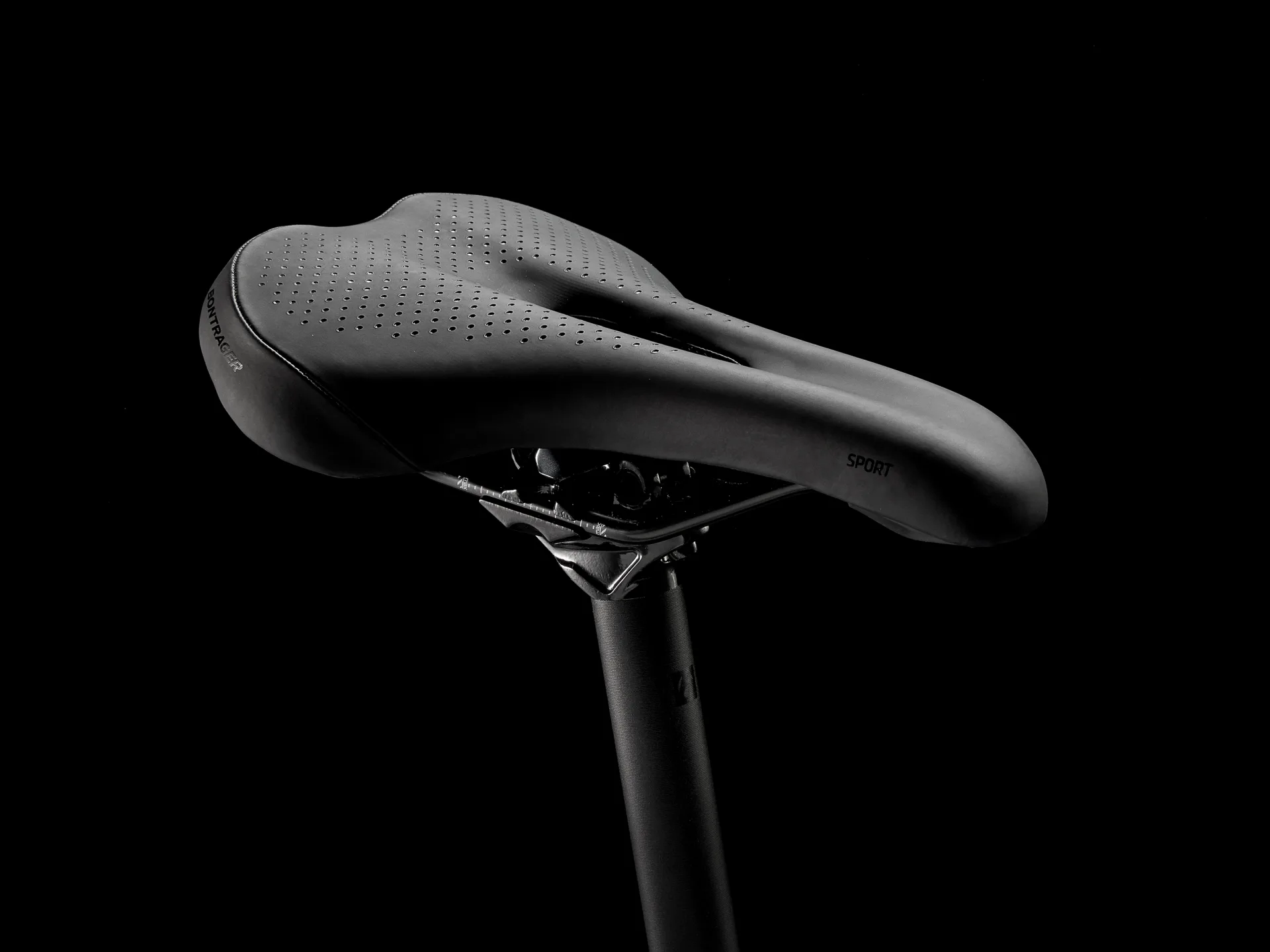

| Saddle | Bontrager Sport |
|---|---|
| Seatpost | Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length |

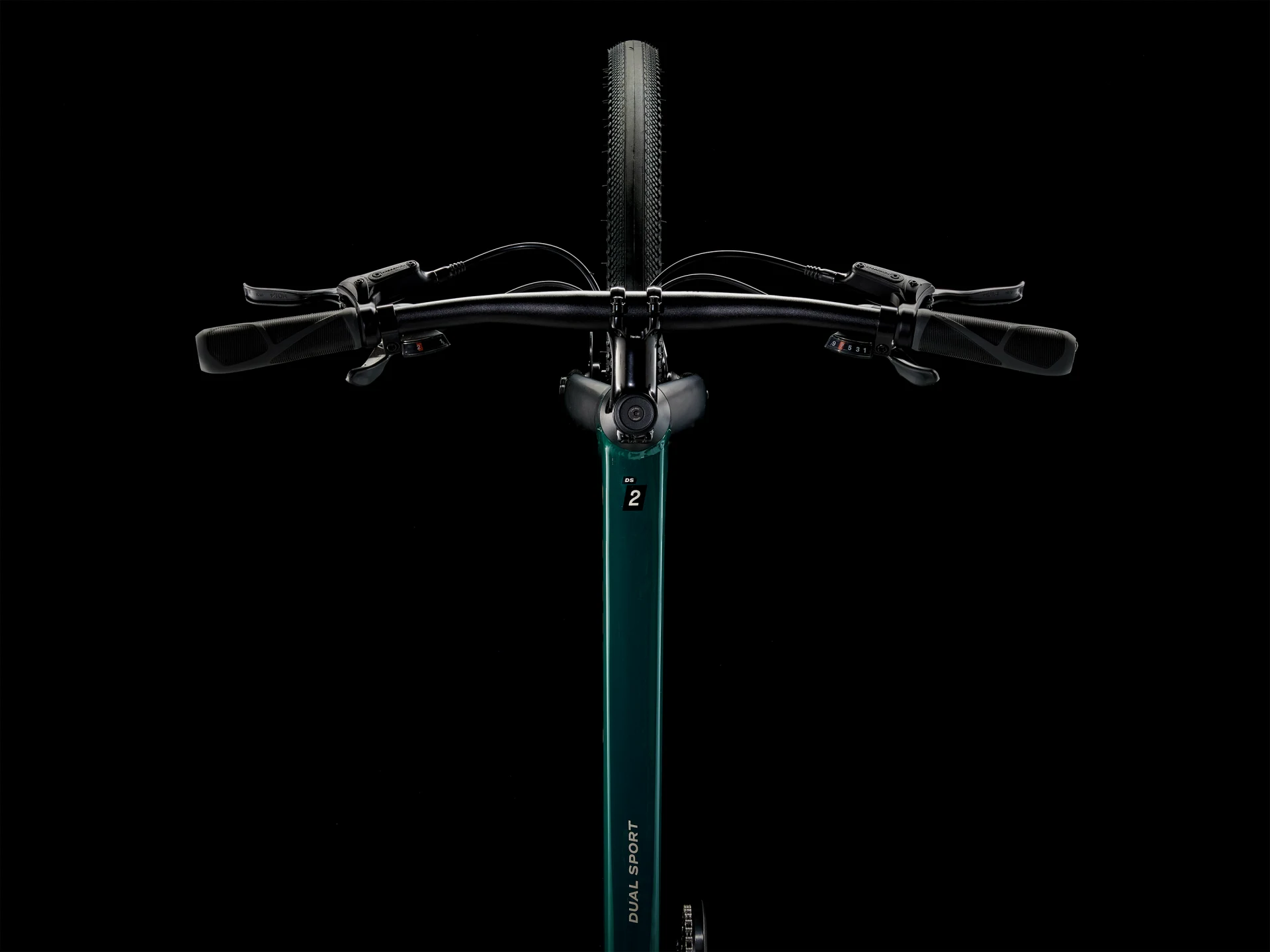

| *Handlebar | Size: S Bontrager alloy, 31.8 mm, 15 mm rise, 600 mm width |
| Size: M Bontrager alloy, 31.8 mm, 15 mm rise, 660 mm width |
|
| Size: L, XL Bontrager alloy, 31.8 mm, 15 mm rise, 690 mm width |
|
| Grips | Bontrager Satellite |
| *Stem | Size: S Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length |
| Size: M, L Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 80 mm length |
|
| Size: XL Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 90 mm length |
|

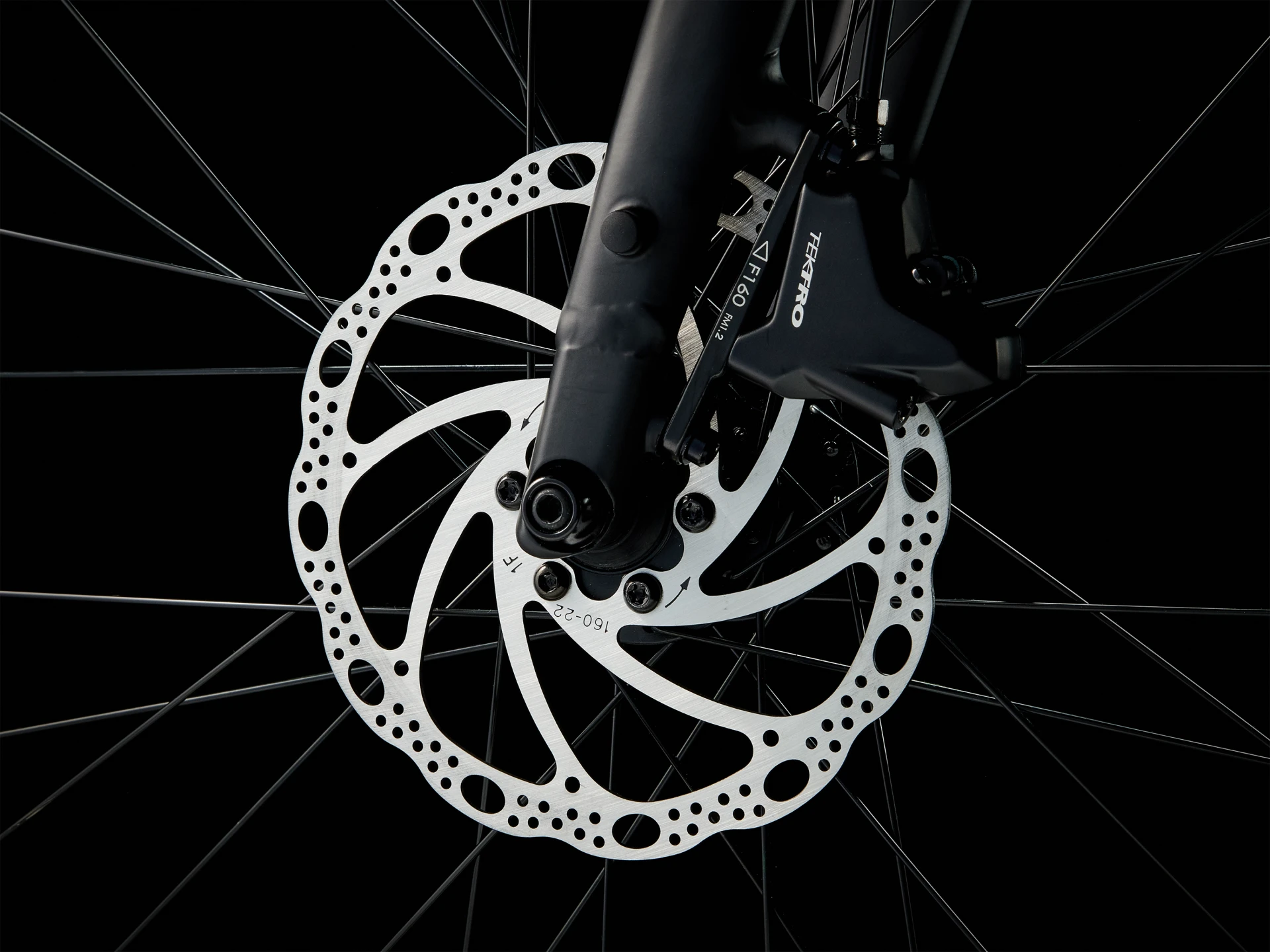

| Brake Set | C-Star BH-RS925T hydraulic disc, 160 mm rotor |
| Rotor size | Max brake rotor sizes: 160mm front & rear |
Weight
| Weight | M – 12.79 kg / 28.2 lbs |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
