Specifications
Frameset

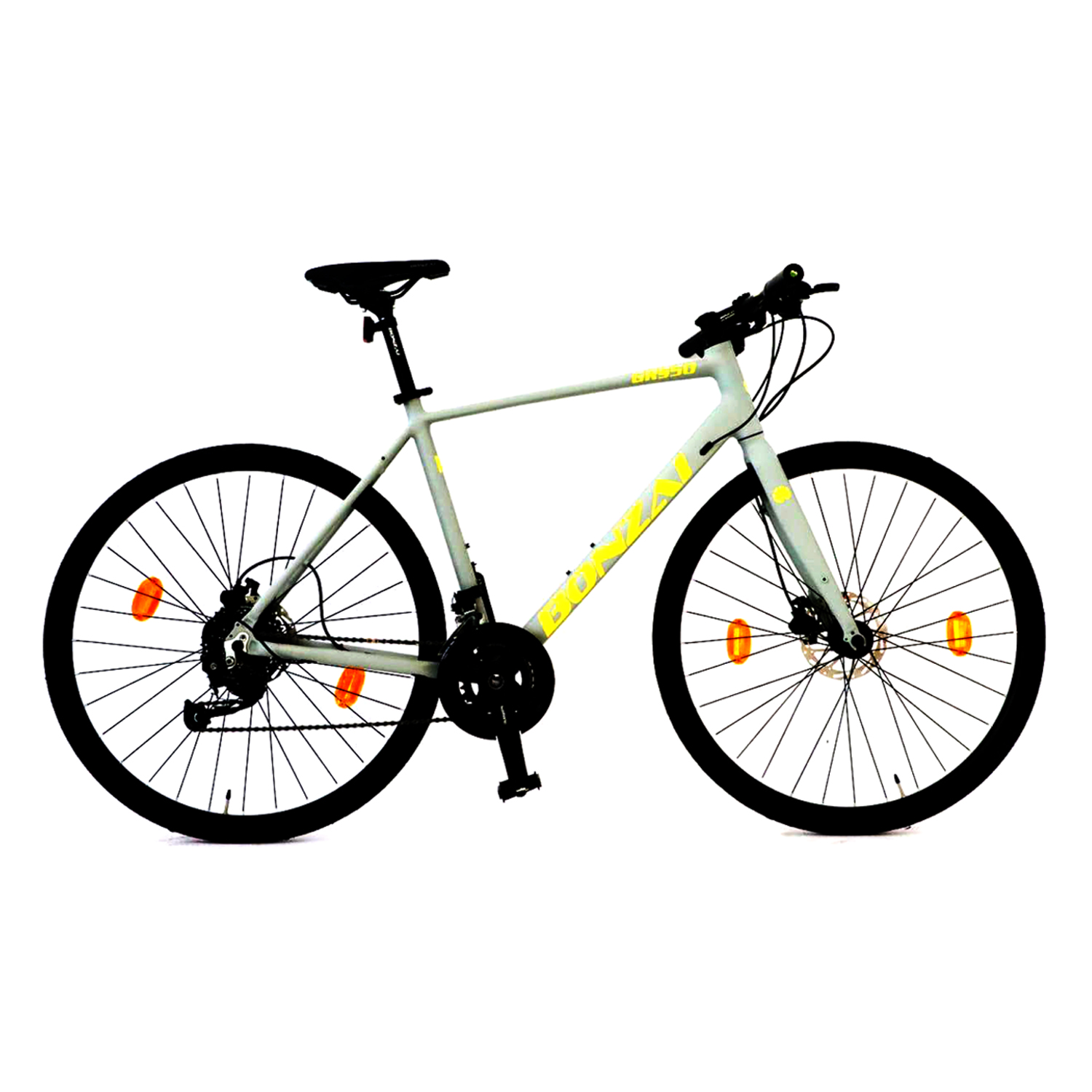

- Frame – Smooth weld, Aluminum Alloy 6061, dropper post ready, with internal cable routing
- Fork – Bonzai aluminium fork with alloy steerer

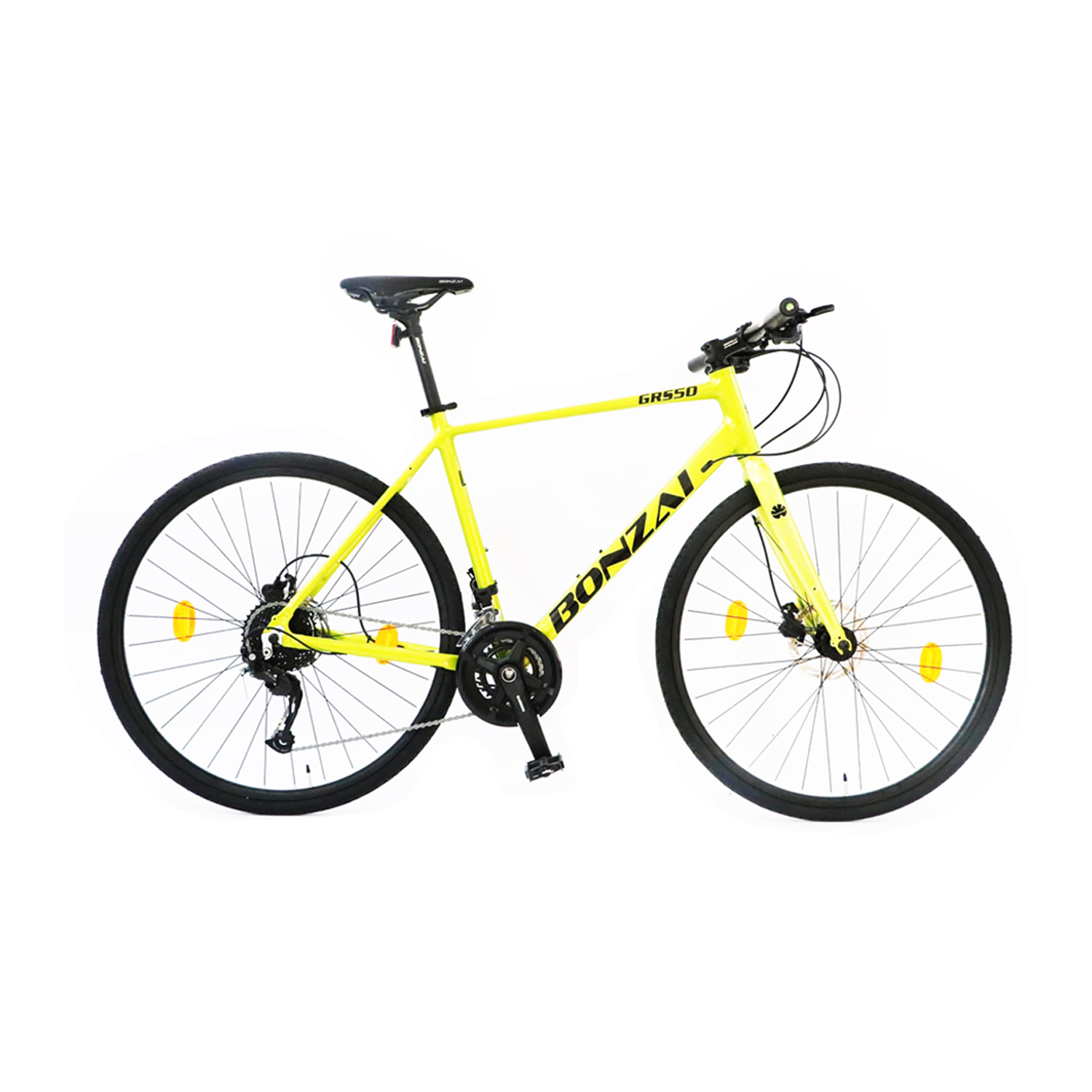

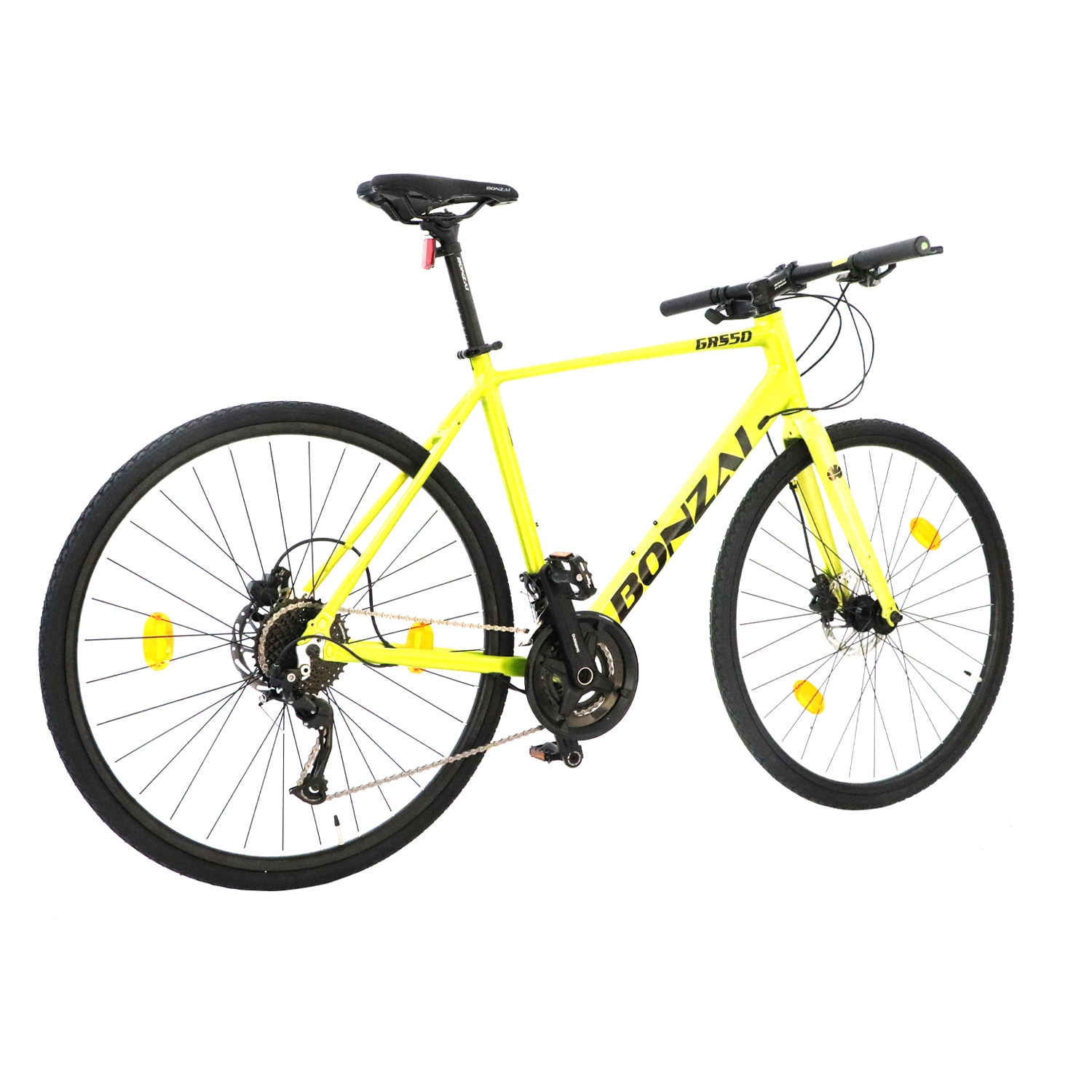

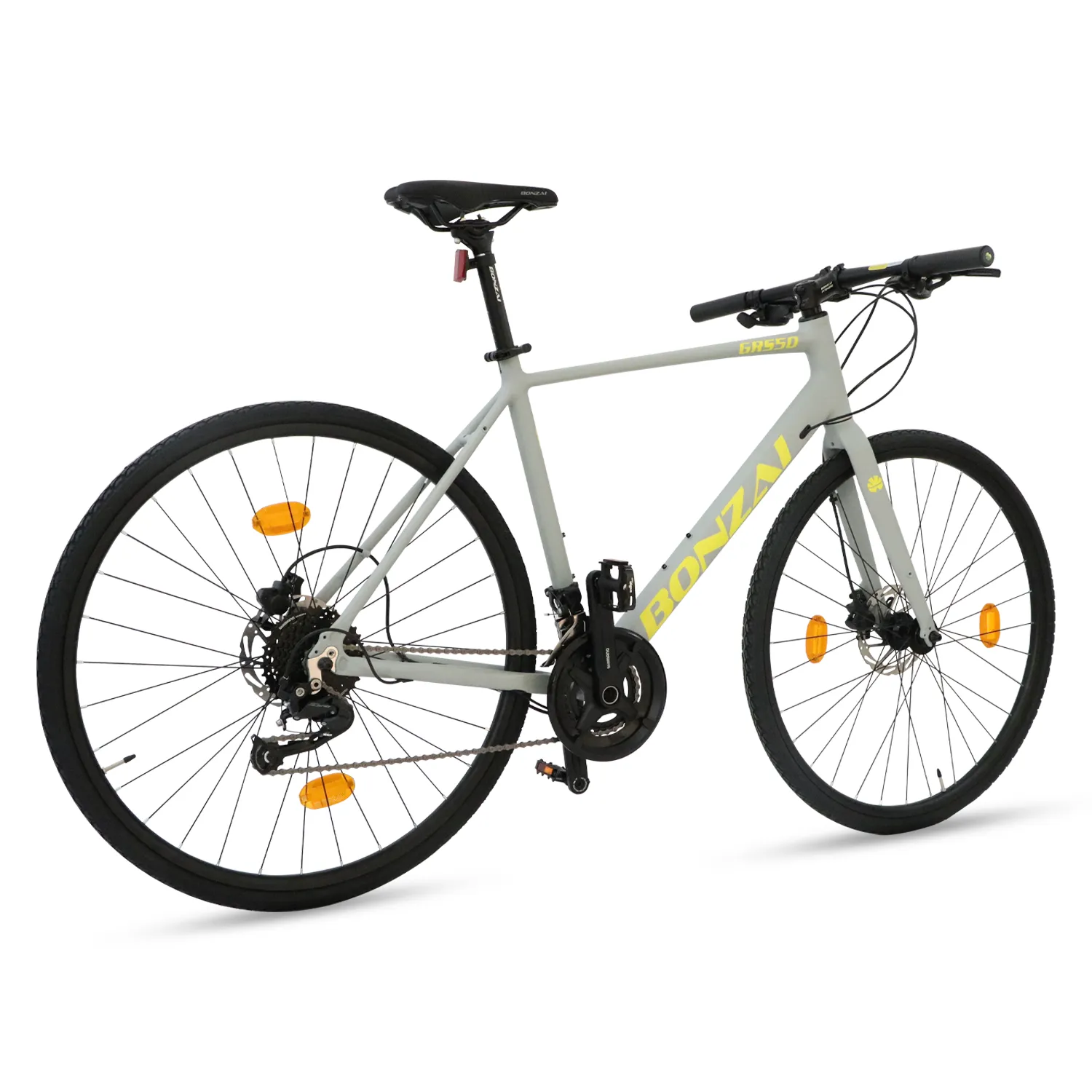

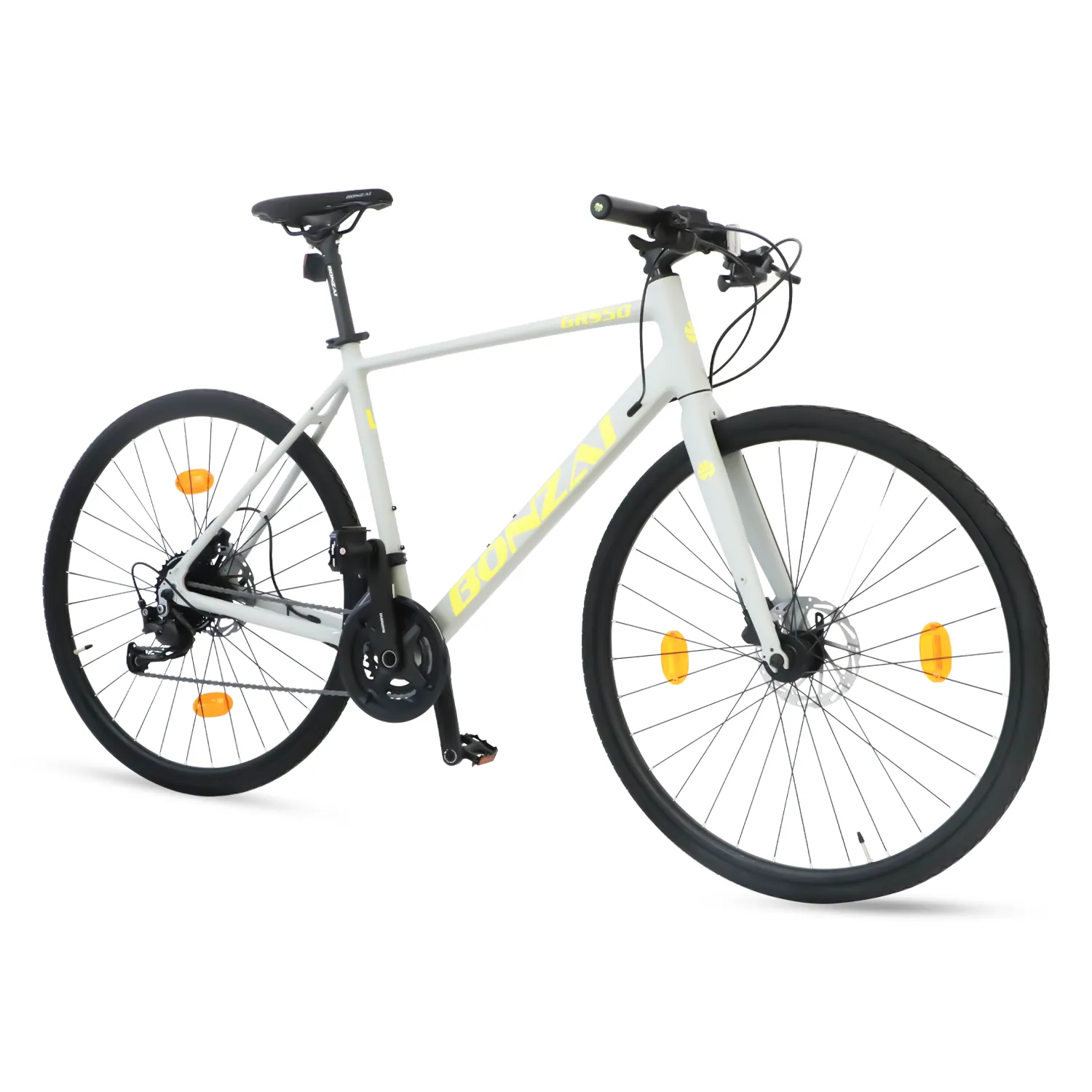

- Frame Colour – Olive Green, Cool Grey
- Decal – Water Decal
Drivetrain
- Shifter – Shimano Alivio M3100 2×9 shifter
- Crank – Shimano MT210-2, 46-30T, hollowtech crank
- Cassette – Shimano HG200, 11-36T, 9-speed
- Front Derailleur – Microshift FD-T492B, 2 Speed
- Rear Derailleur – Shimano Alivio RD-R3100, 9 Speed
- Bottom Bracket – Shimano MT500, hollowtech BB
- Chain – KMC Z-9
- Pedals – Wellgo M085, alloy cage
Cockpit

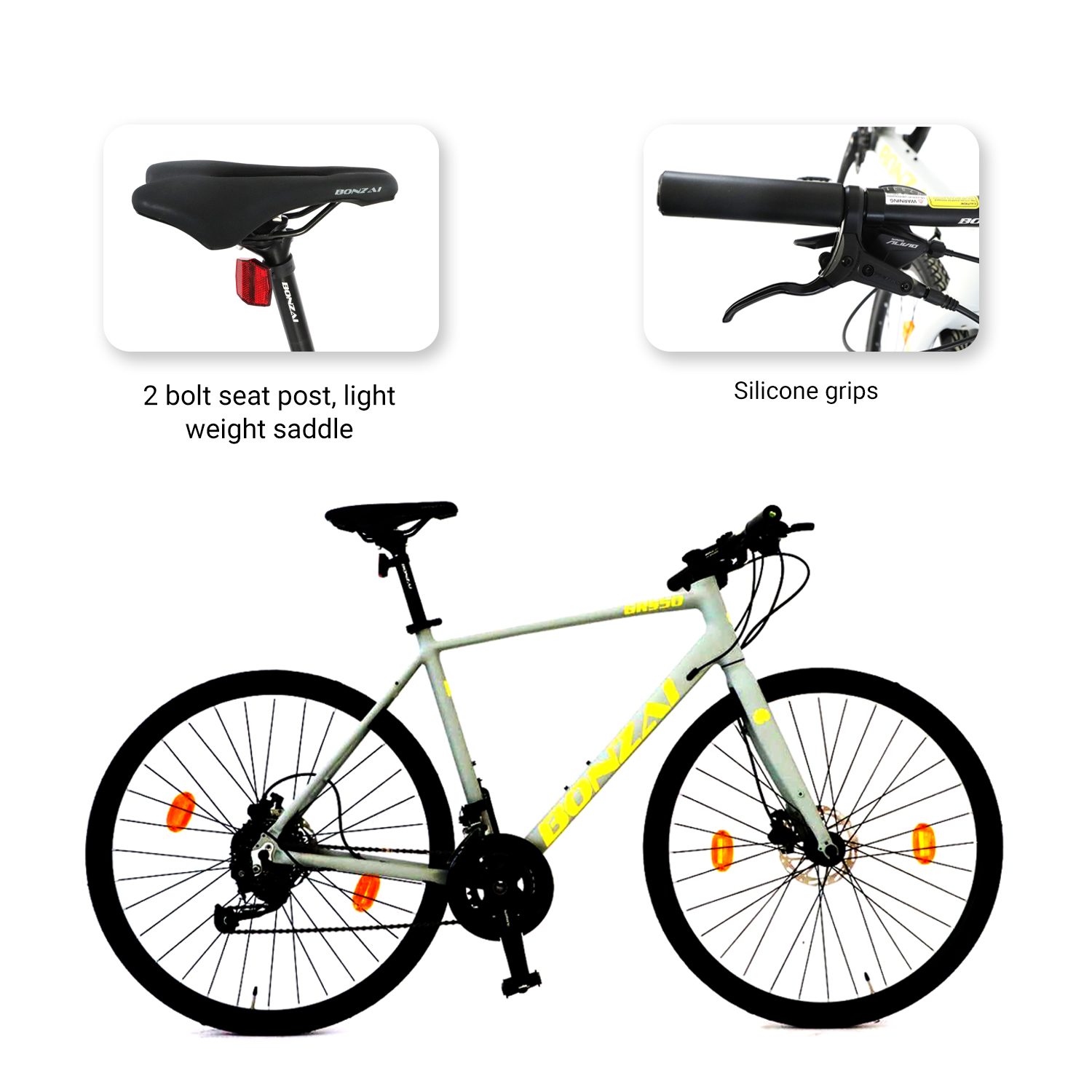

- Saddle – Light weight Saddle
- Seat Post – Alloy, 27.2×2.2Tx300mm

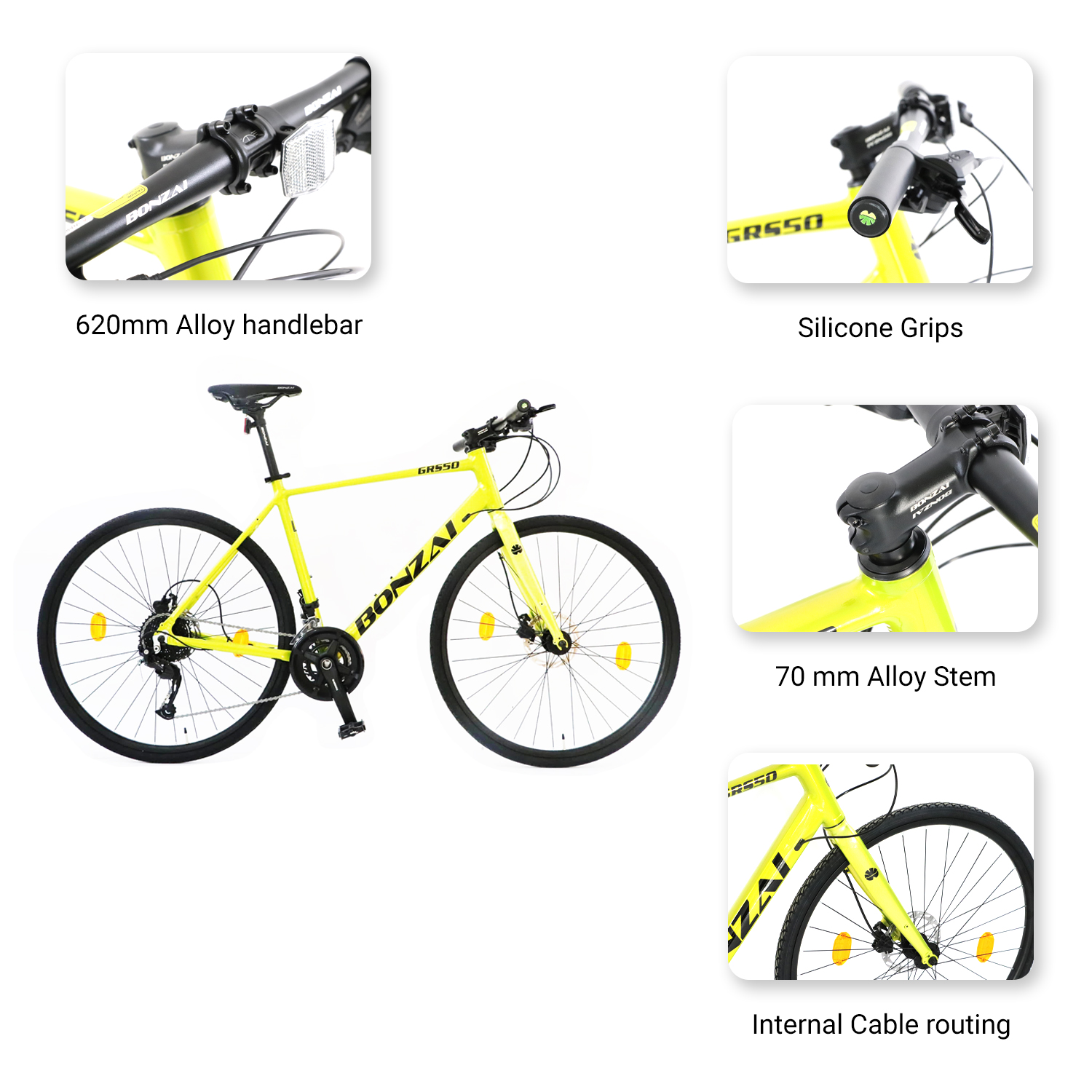

- Handlebar – 620mm alloy handlerbar with 10mm rise
- Headset – Sealed cartridge bearing, XH-22
- Stem – Alloy Stem with 7°rise/drop, 70mm length
Wheel & Tire
- Rims – Aluminum alloy double walled, 32H
- Tire & Tube – Kenda Kwest K193, 700x32c, Presta valve
- F/R Hub – MY-607BQ, Sealed bearing, QR
- Spokes – Stainless Steel, G14
Brake

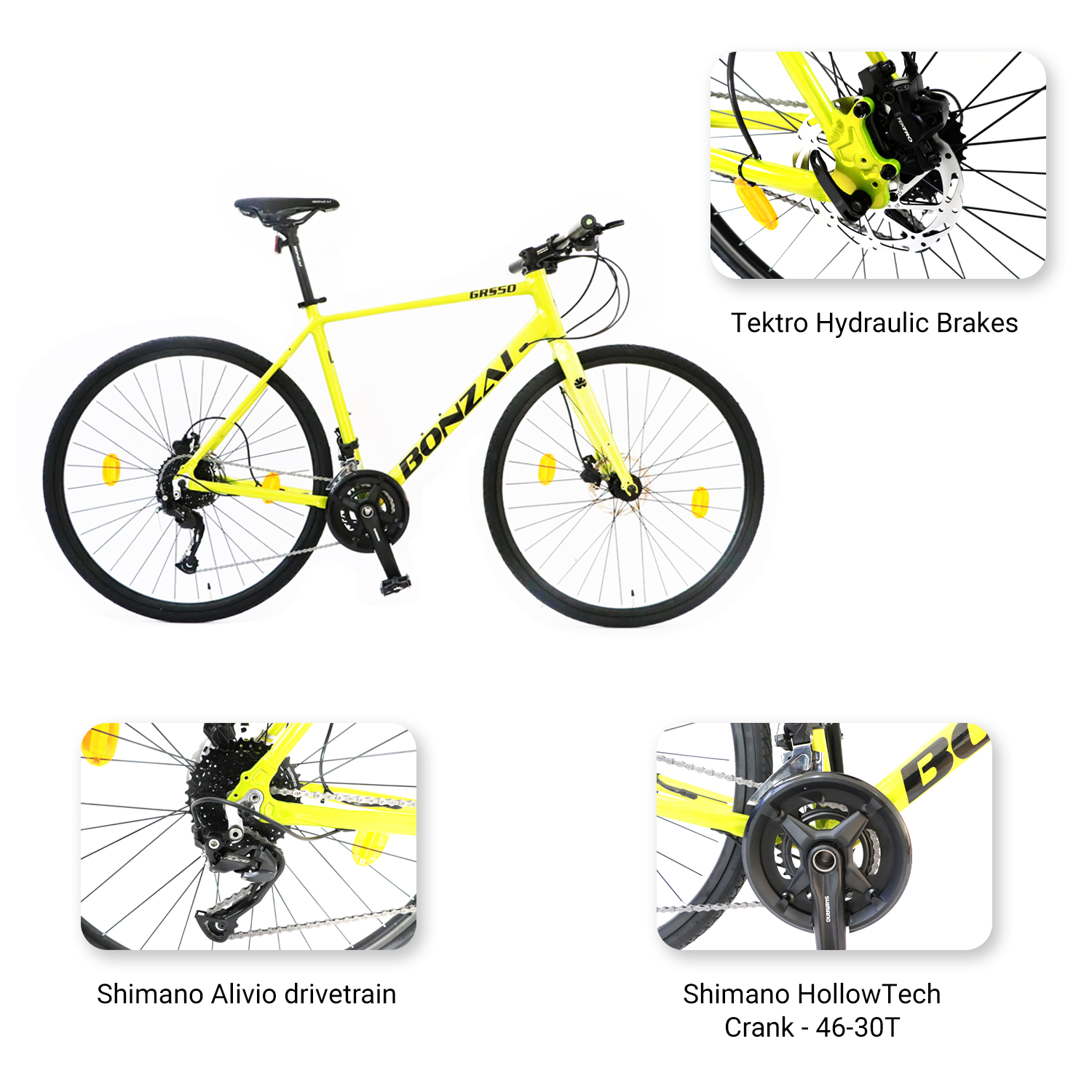

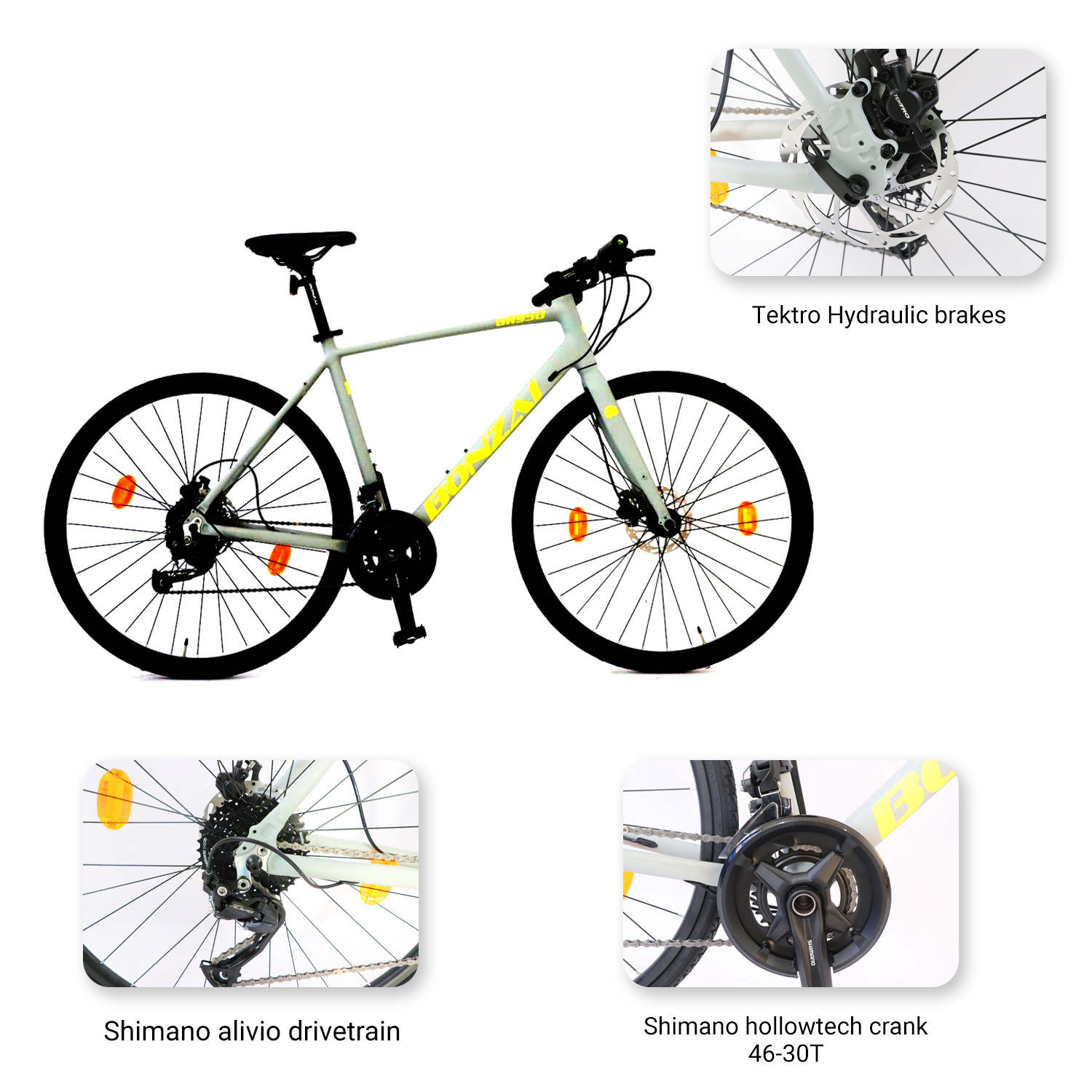

- Brake – Tektro HD275 Hydraulic brakes
- Brake Caliper – Tektro rotor, 160mm rear and 180mm front
Accessories
- Reflectors
- Tool Kit
Other
- Weight – 12 kilograms
- Ideal Height – Size 52(168-176cm), Size 52(176-186cm)
- Max Weight – 125 kilograms (including bike weight)
Geometry & Size
| Frame GRS50 | M(52 cm) | L(54 cm) |
| Rider Height (In CMS) | 168-176 | 176-186 |
| Seat Tube (ST) | 520mm | 540mm |
| Effective Top Tube (TT) | 571mm | 583mm |
| Chain Stay Length (CS) | 438mm | 438mm |
| Head Tube Angle (HTA) | 71 deg | 71.5 deg |
| Seat Tube Angle (STA) | 73.5 deg | 73.5 deg |
| Bottom Bracket Drop (BD) | 65mm | 65mm |
| Heat Tube (HT) | 170mm | 190mm |
| Fork Length (FL) | 395mm | 395mm |
| Reach(R) | 398mm | 404mm |
| Stack (S) | 585mm | 606mm |
| Wheelbase (WB) | 1057mm | 1065mm |
| Stand Over Height (SH) | 787mm | 806mm |
