Specifications
Frameset

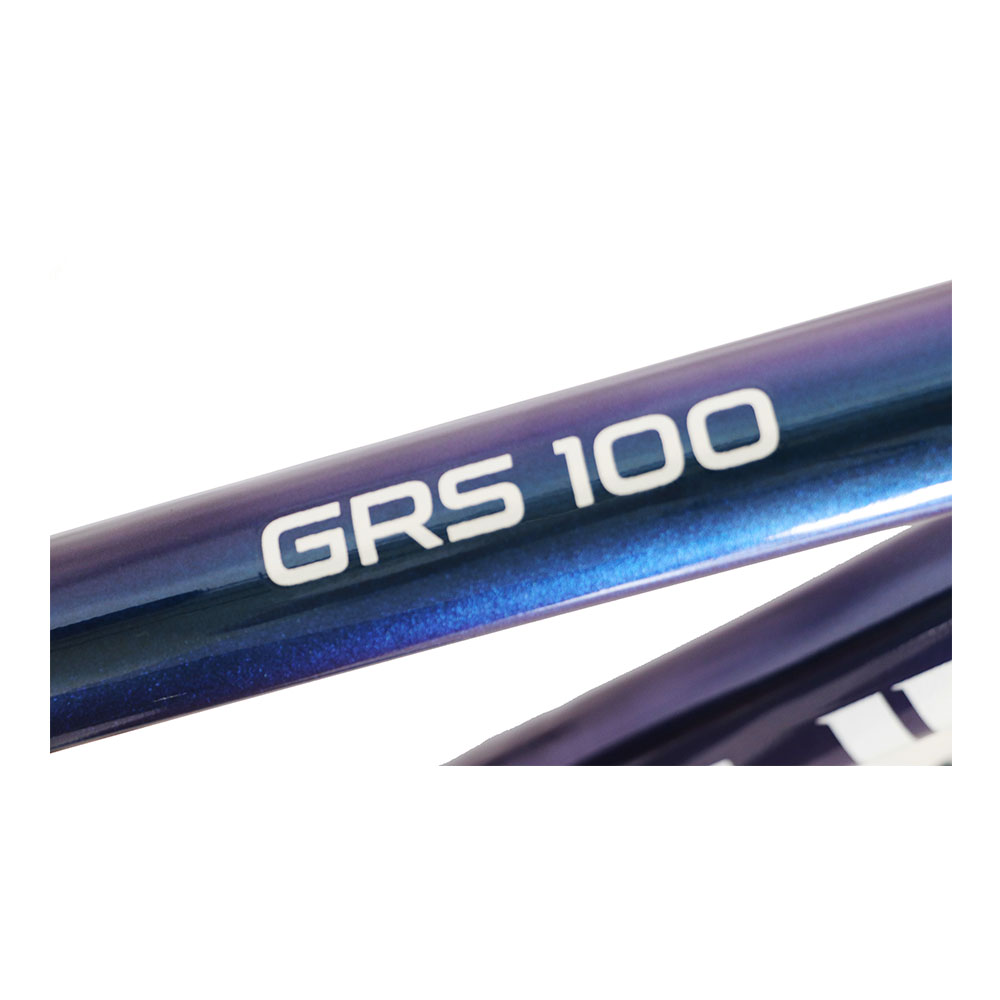

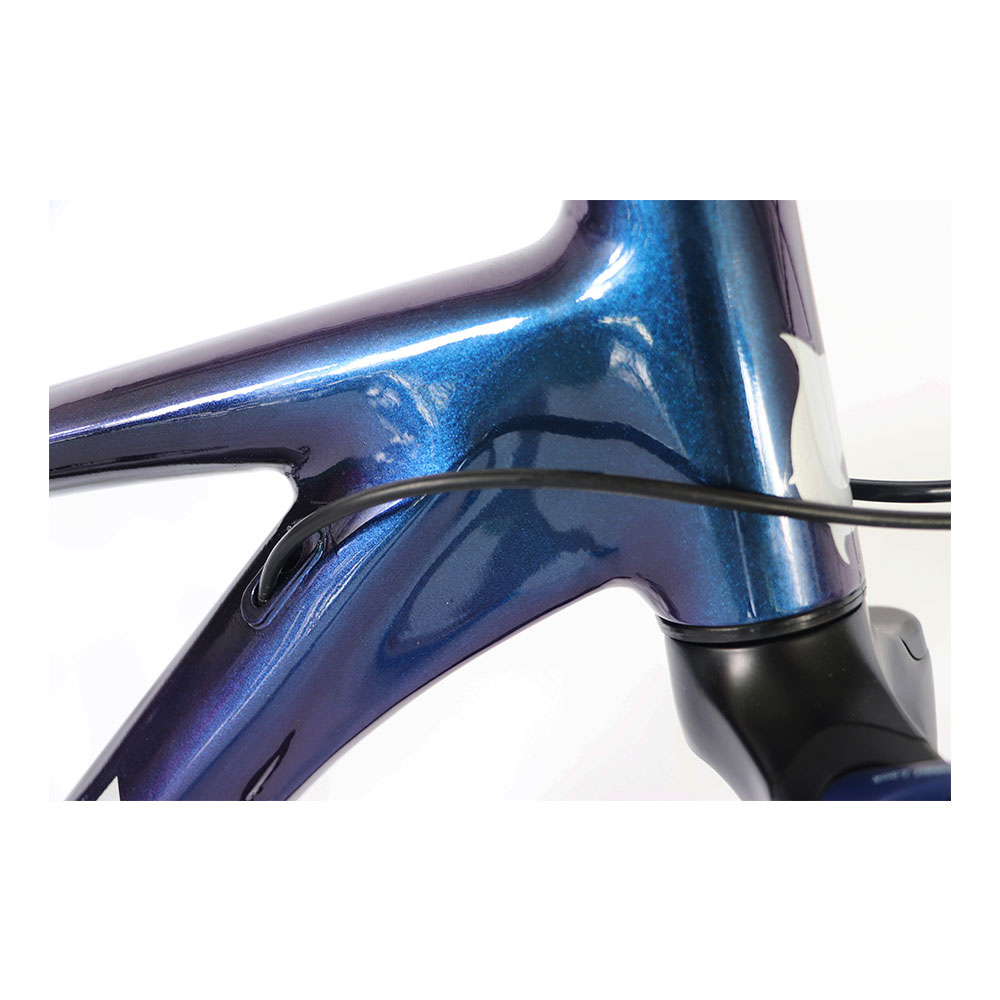

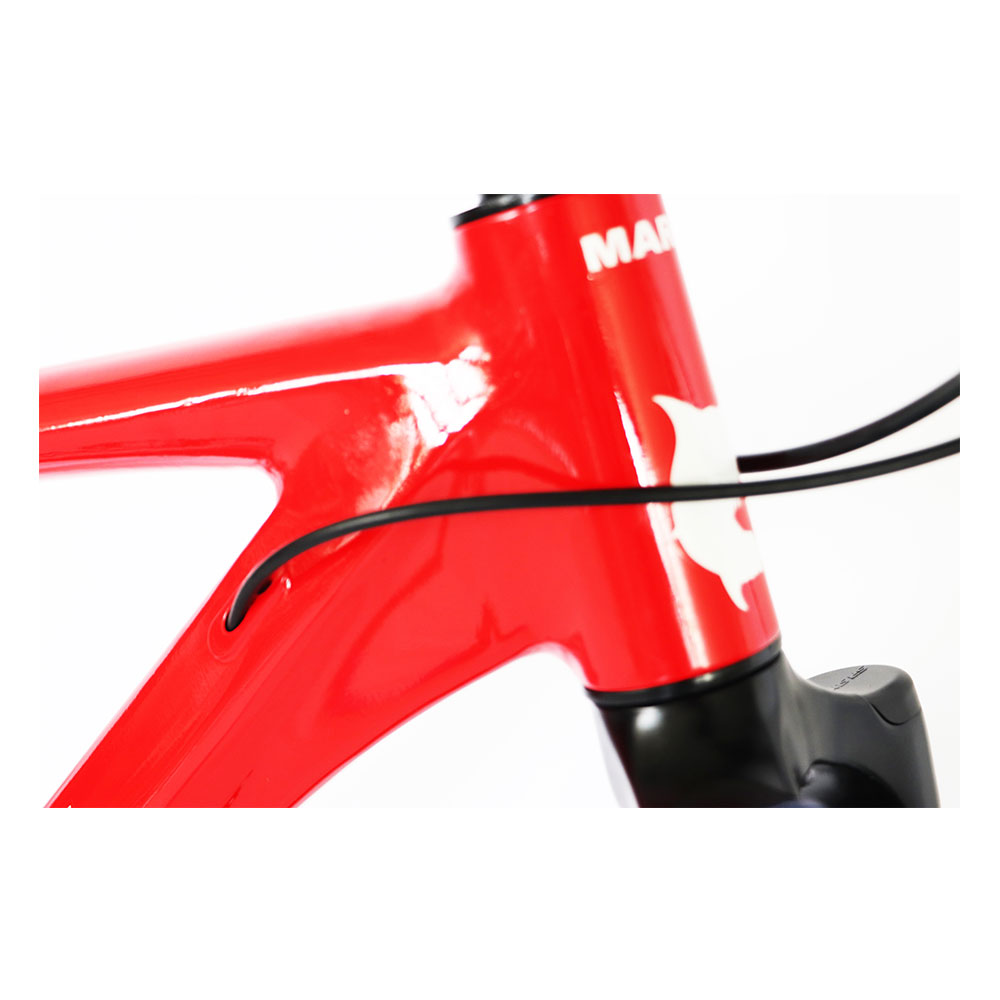

- Frame – Aluminum alloy 6061, internal cable routing, dropper post ready

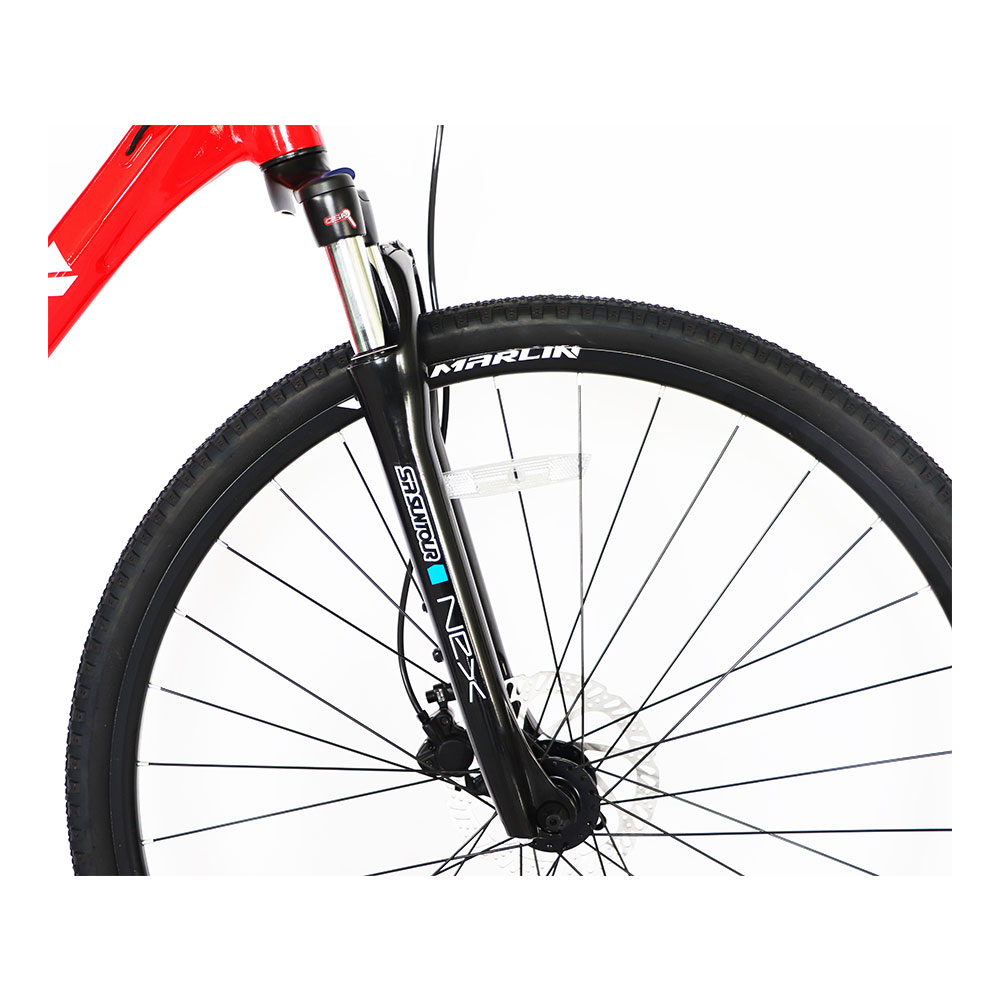

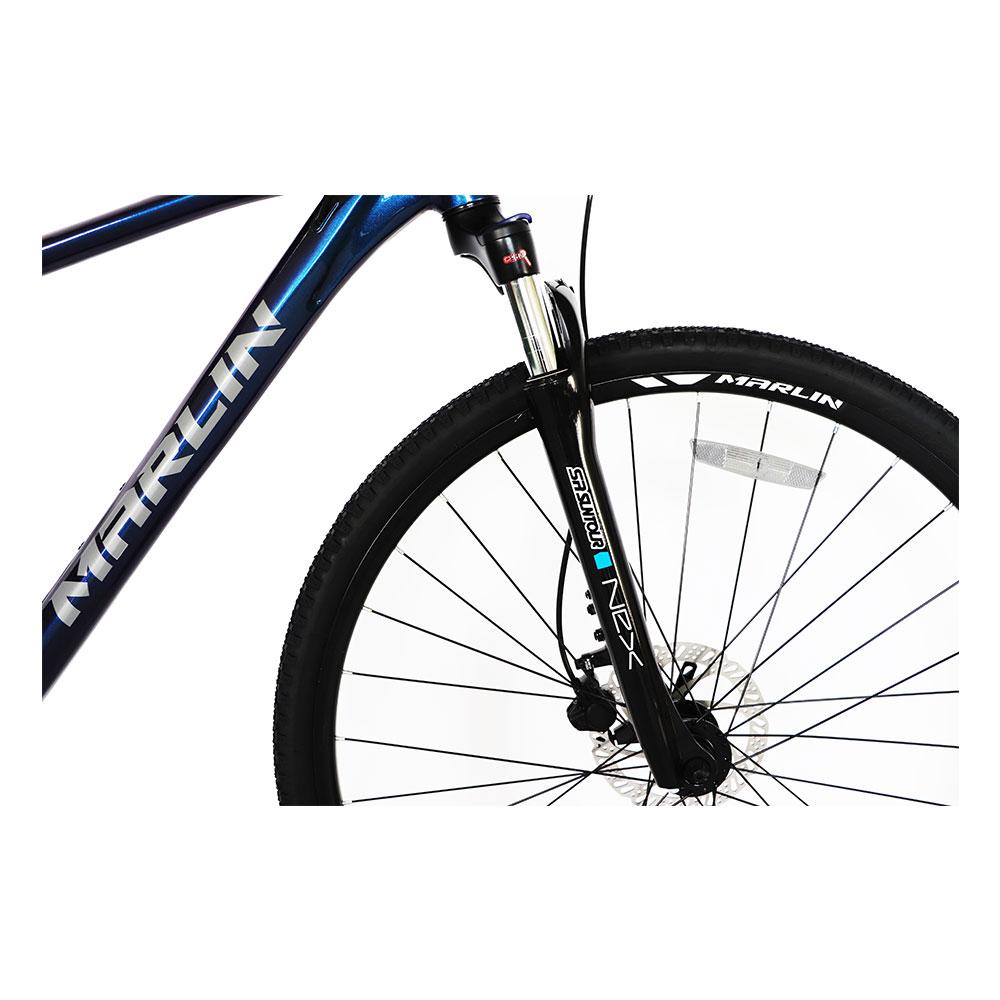

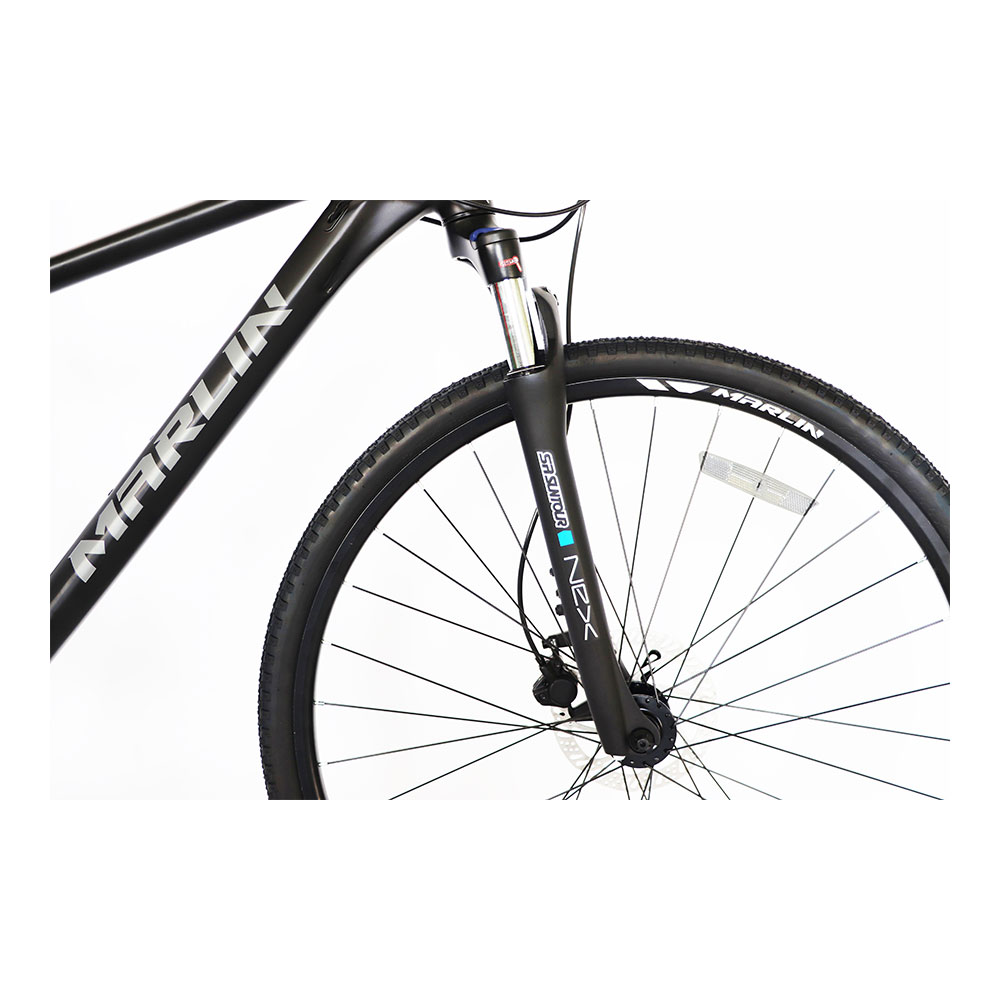

- Fork – SR Suntour NEX HLO 700, 63MM travel with hydraulic lockout

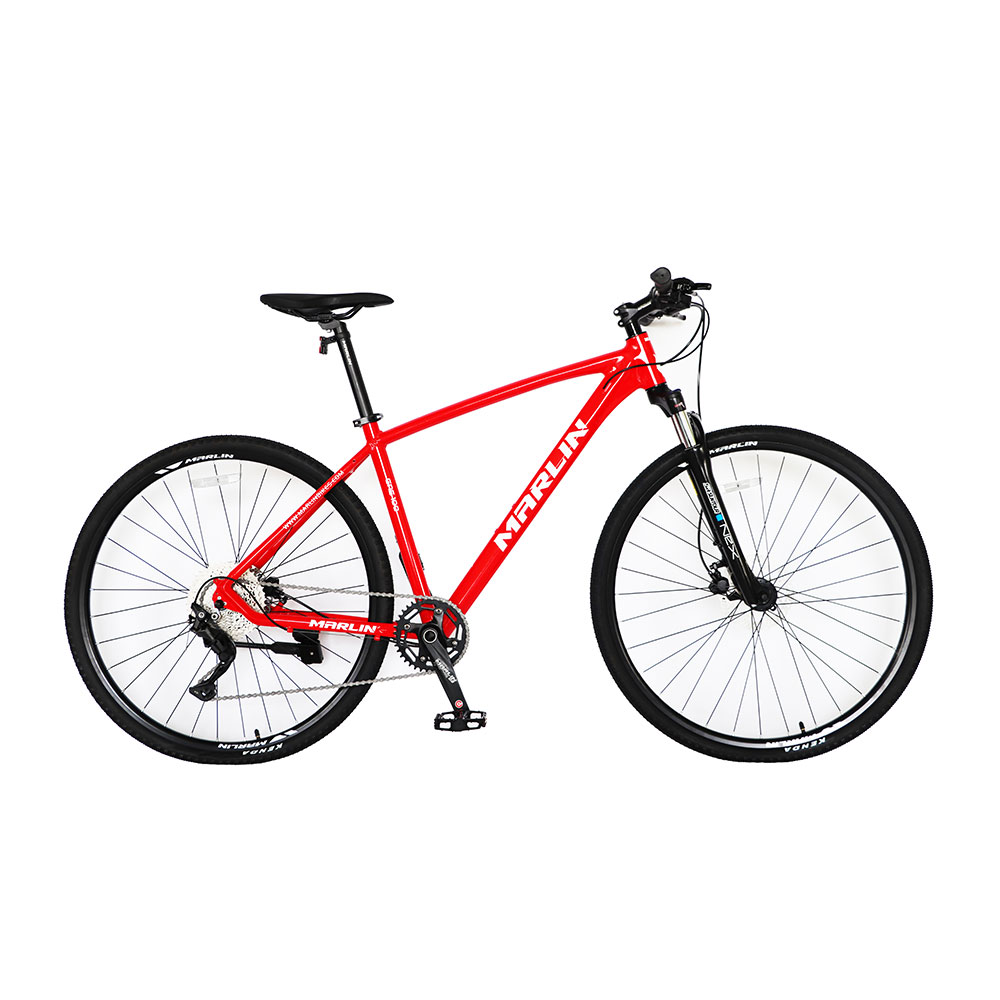

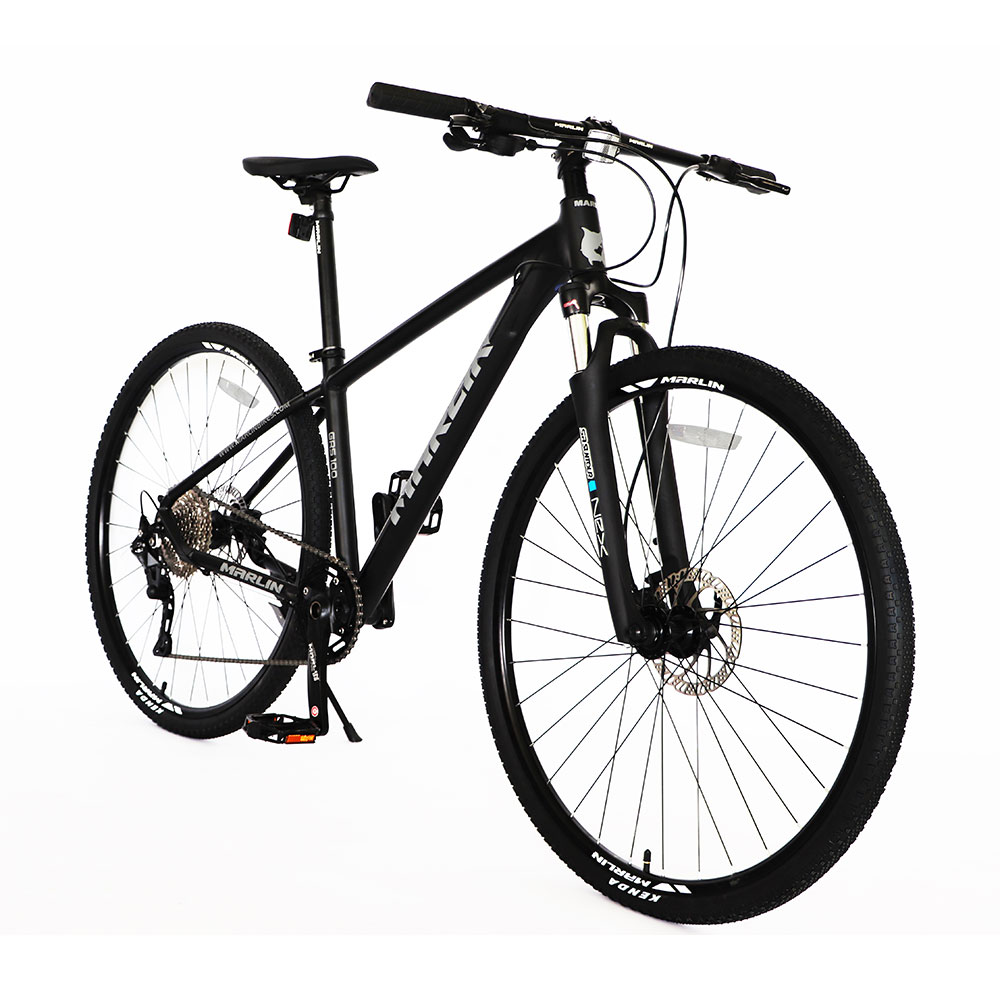

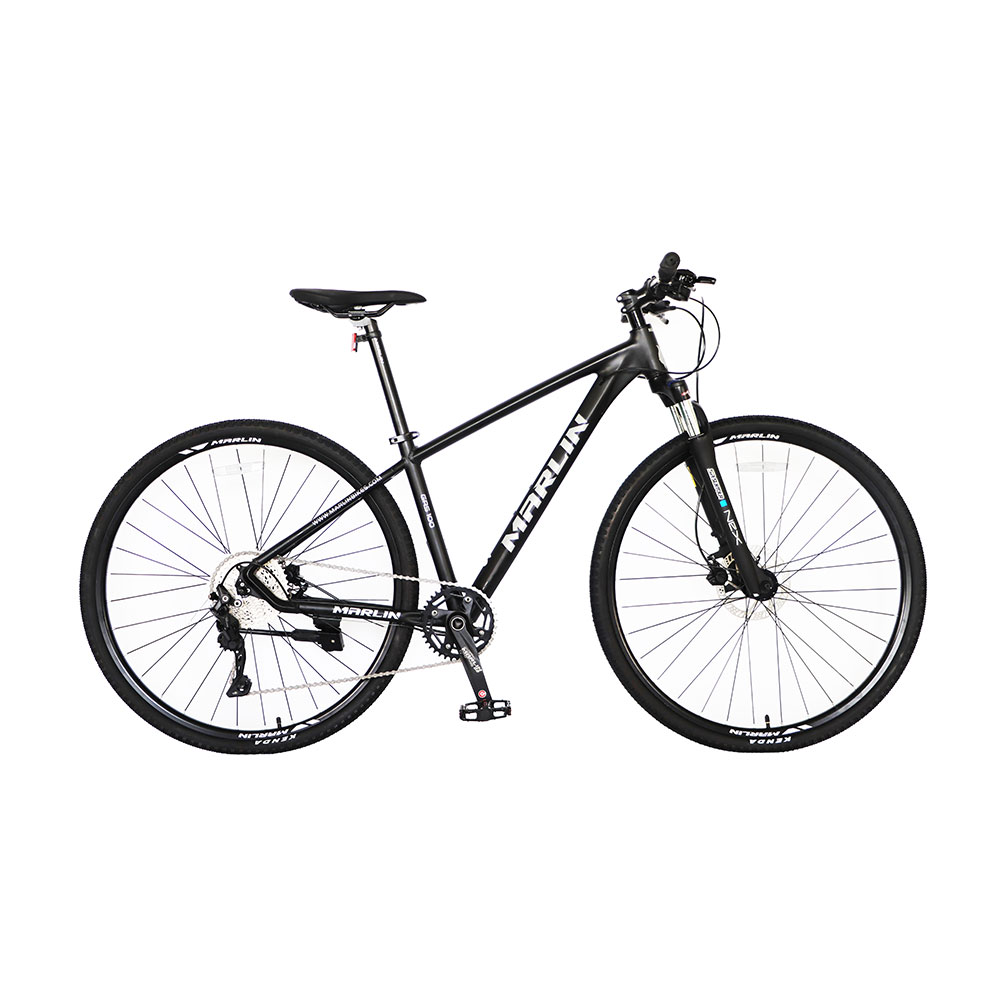

- Frame Color – Matt Black / Viper Red / Chameleon
- Decal – Water Decal
Drivetrain
- Shifter – Shimano Deore M4100, 1×10 Speed

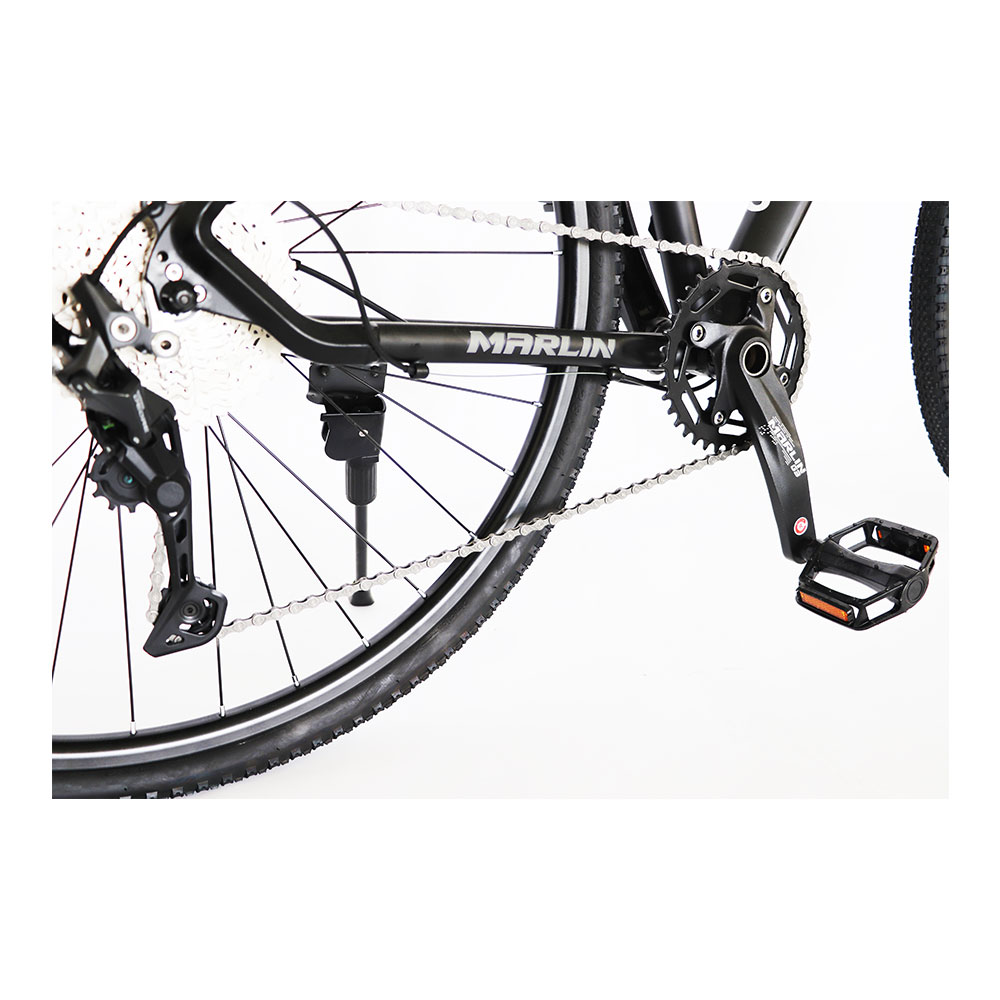

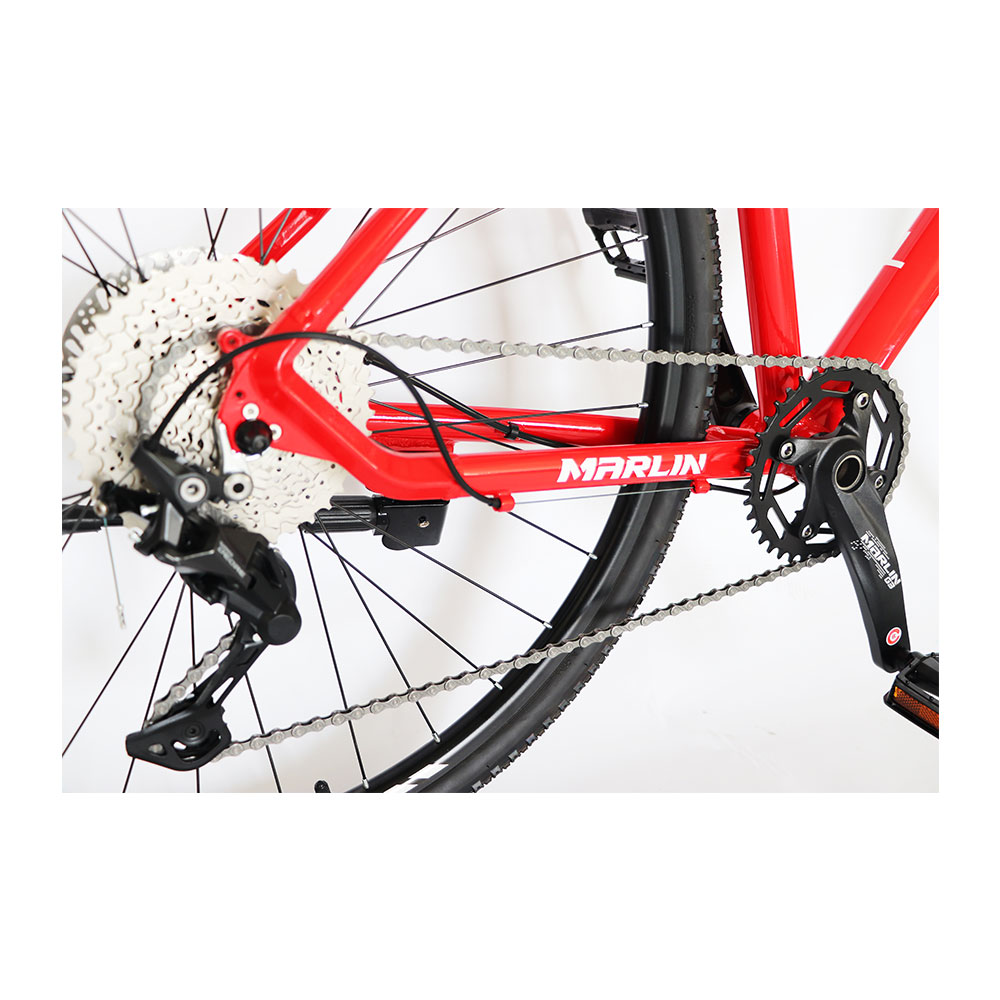

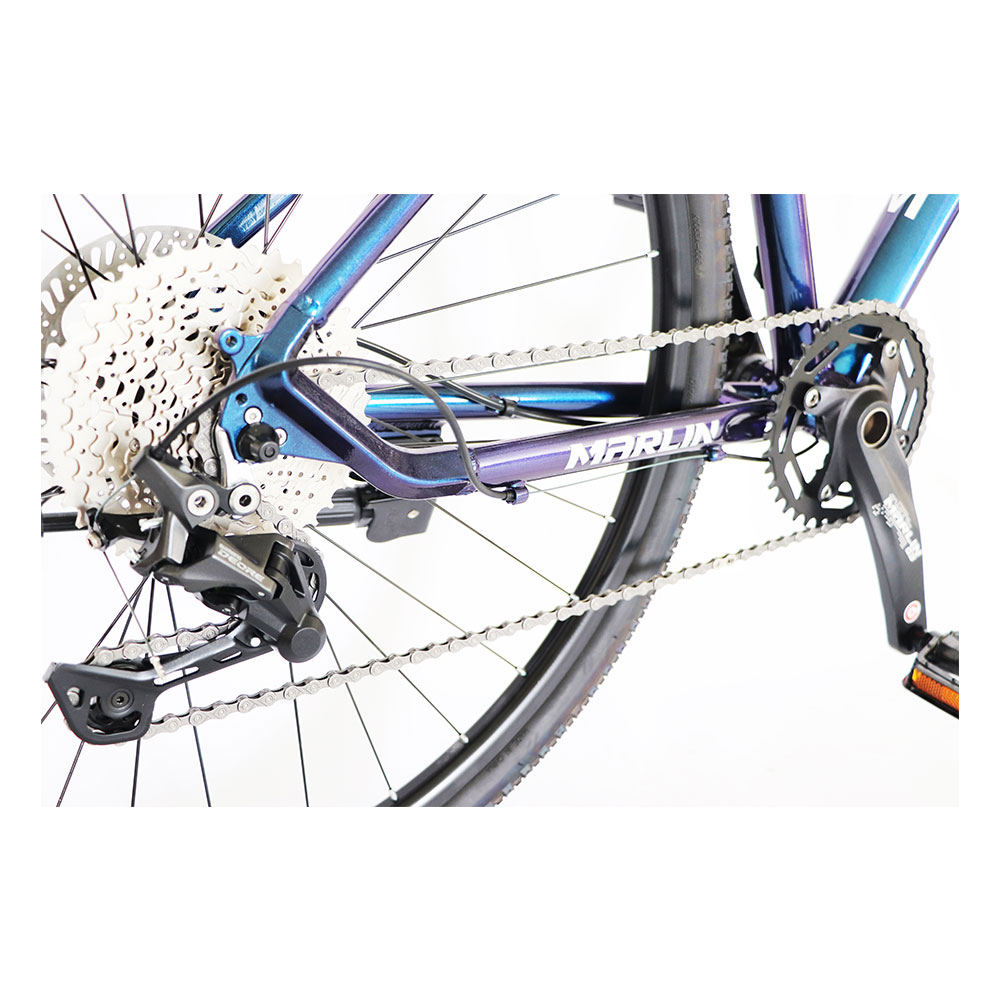

- Crank – Marlin G3 Alloy 2 piece HollowTech Crank, 104 BCT, 38T with narrow wide chain-ring
- Cassette – Shimano Deore M4100 11-42T

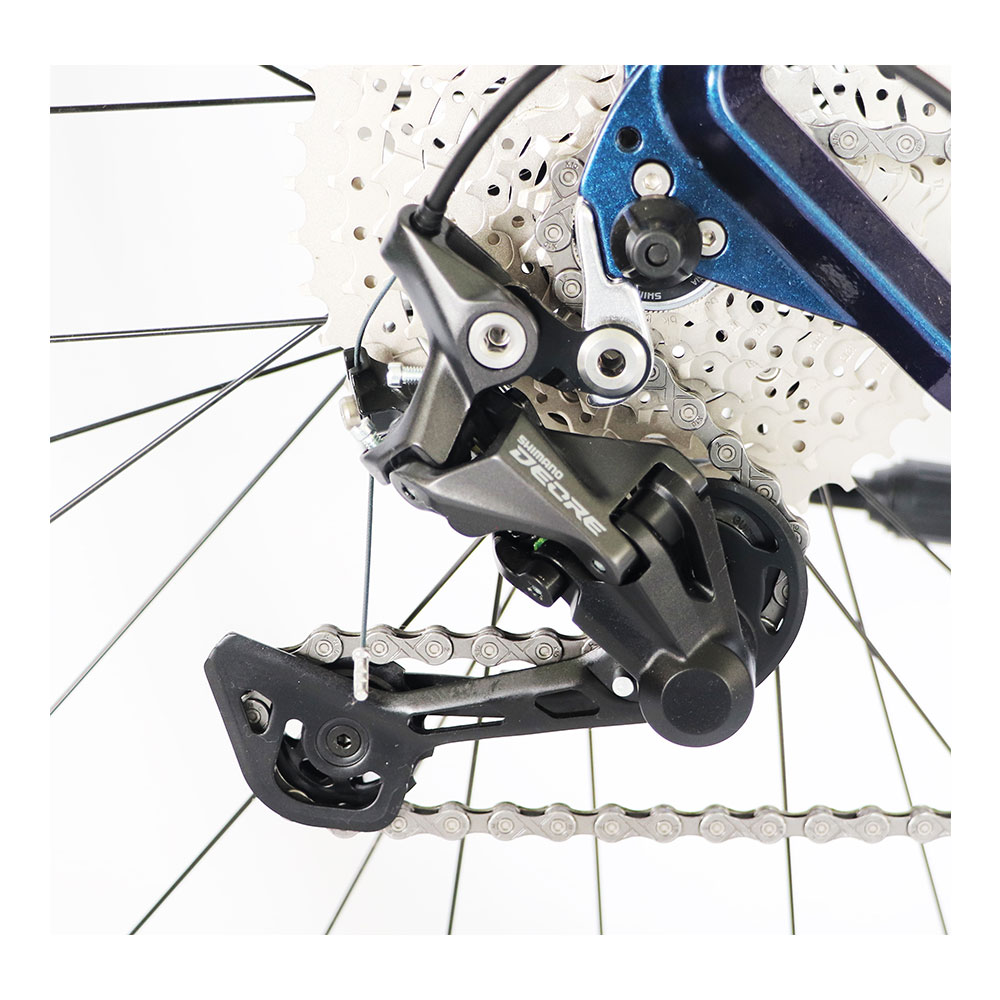

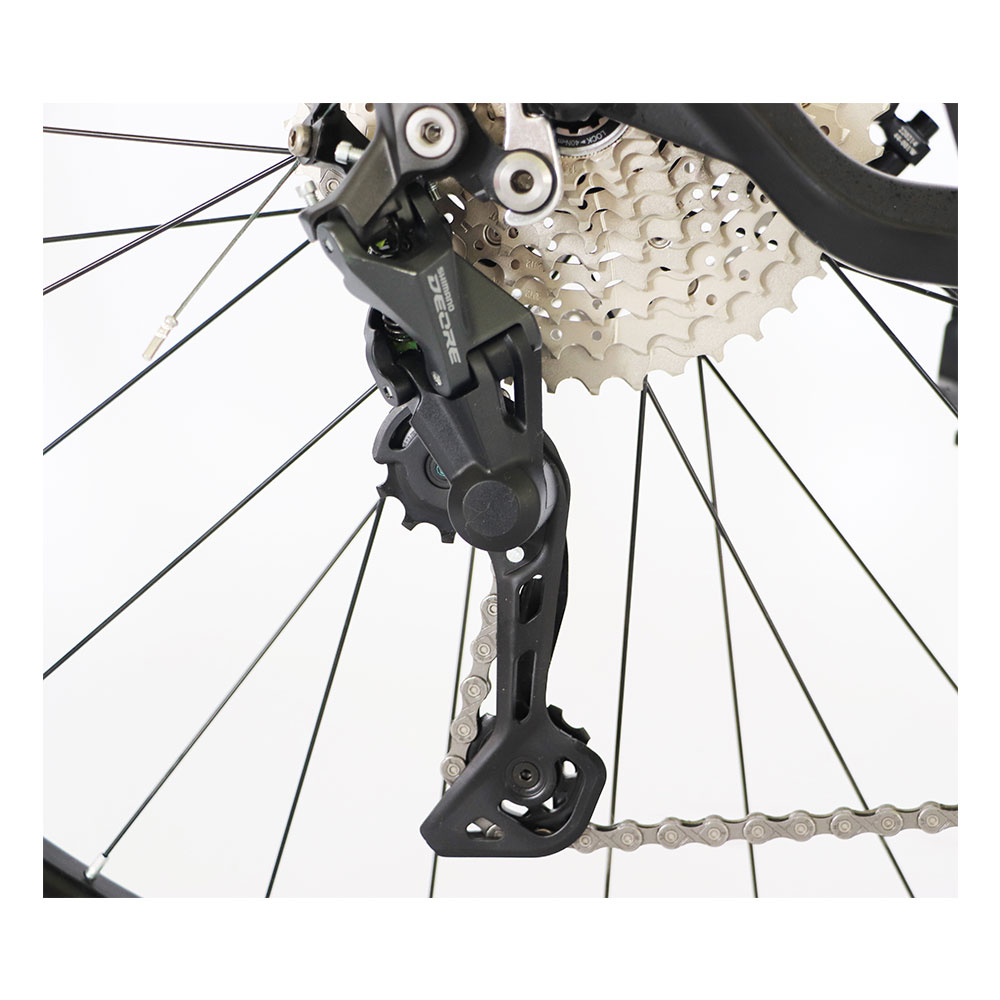

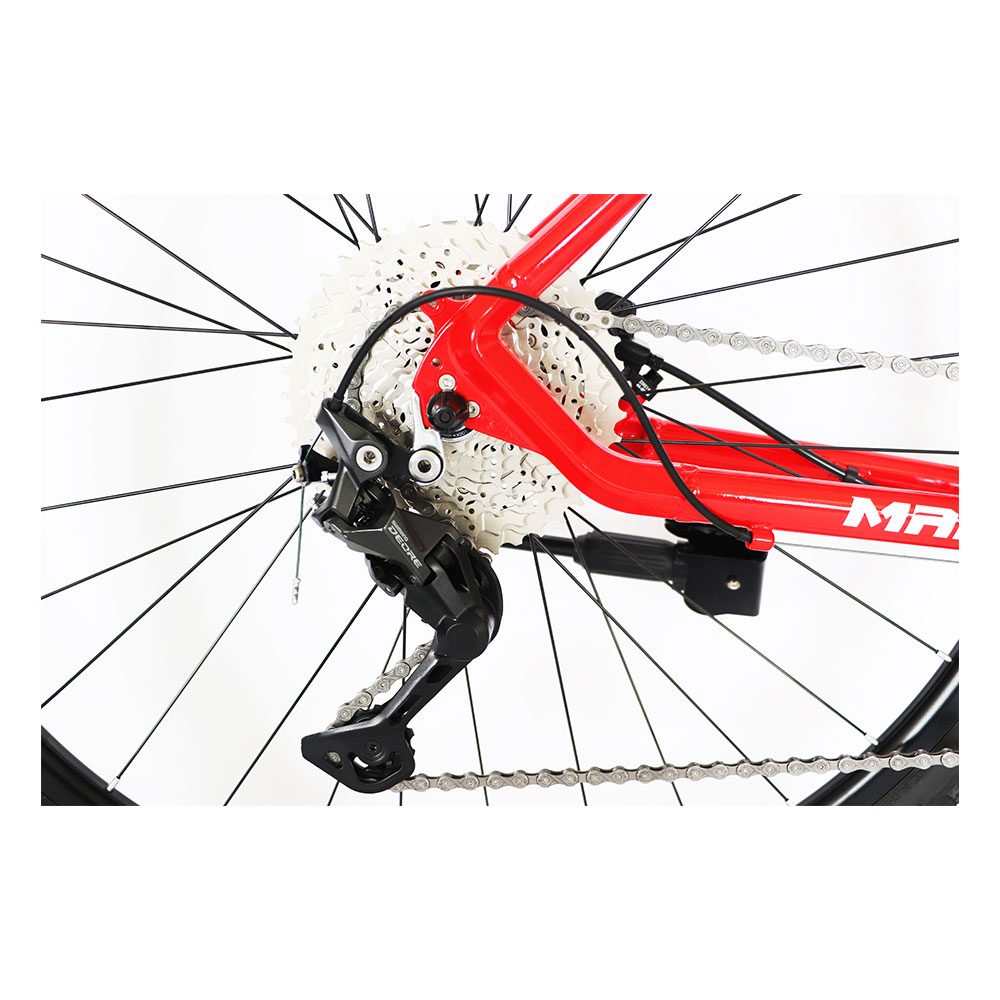

- Rear Derailleur – Shimano Deore M4120
- Bottom Bracket – HollowTech Sealed BB
- Chain – KMC X10 116L
- Pedals – Alloy Pedals with reflectors
Cockpit

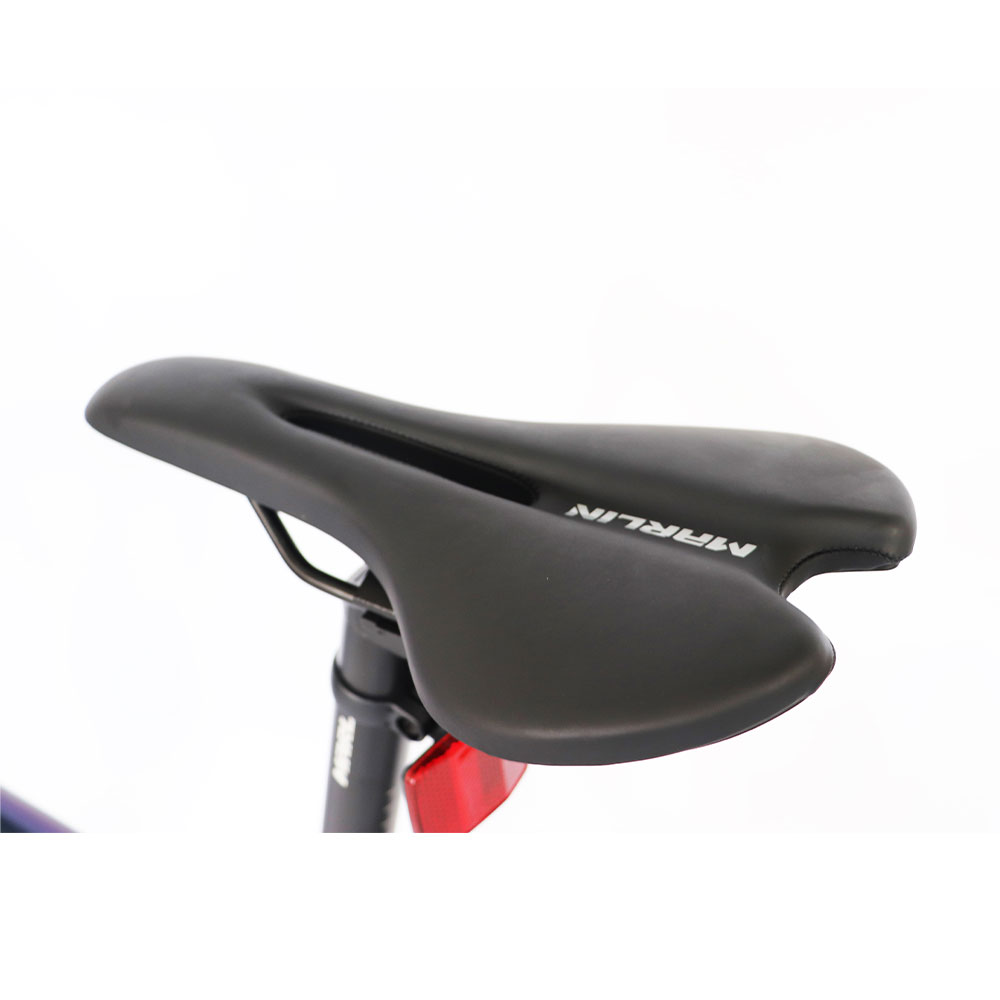

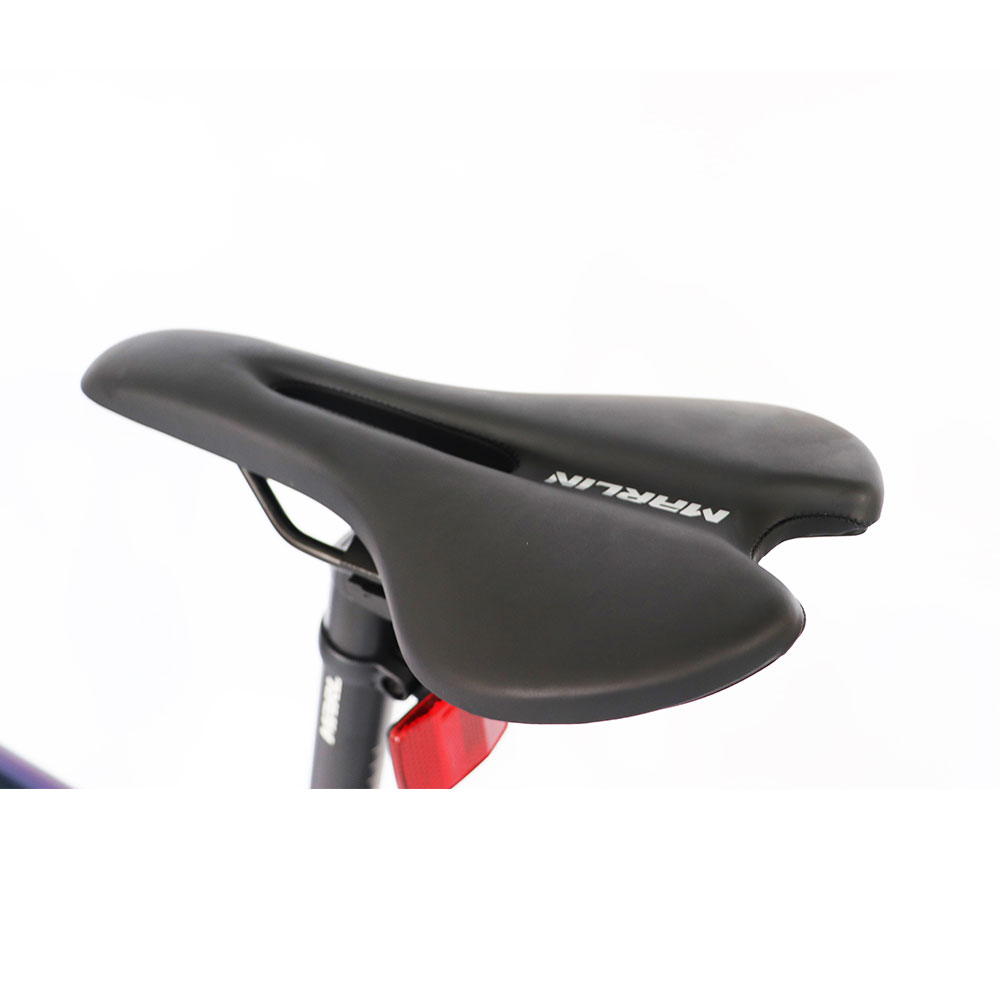

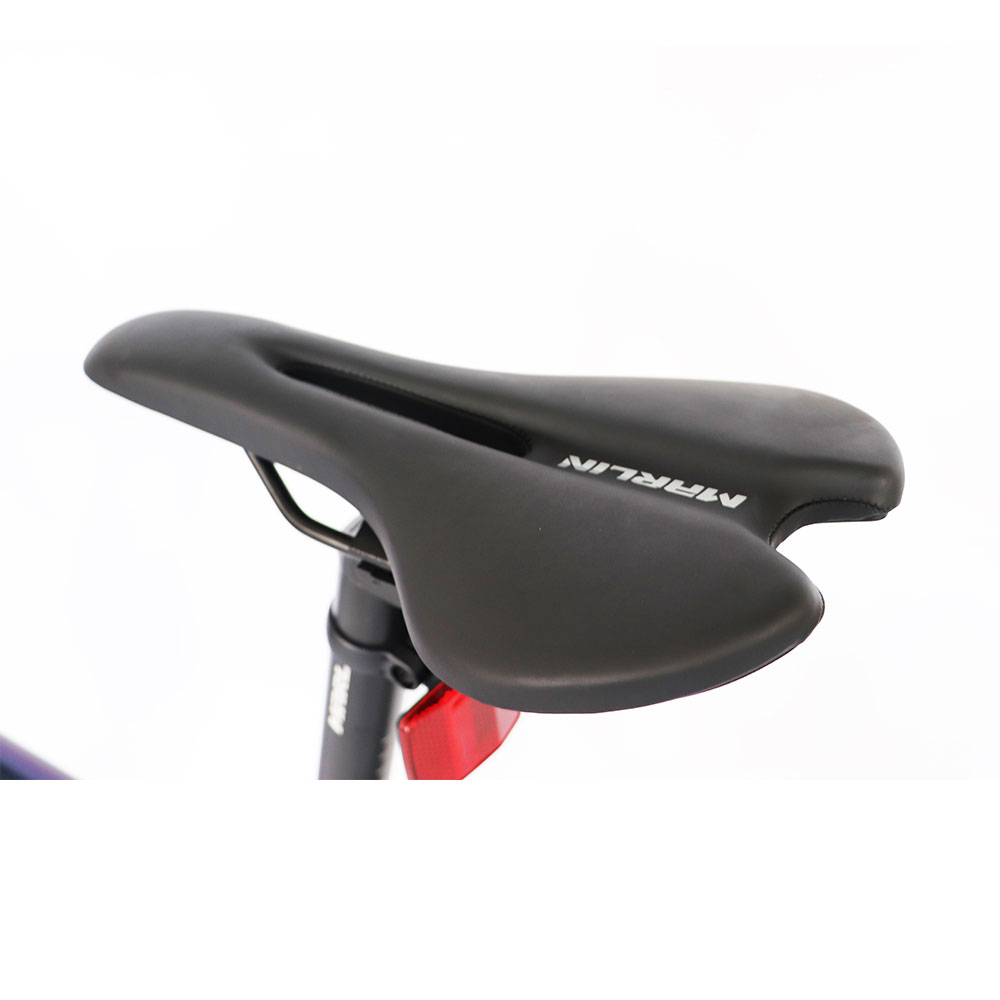

- Saddle – PU Foam, Vinyl cover, with ABS protection plate
- Seatpost – Alloy, 30.8×2.4Tx350mm with clamp

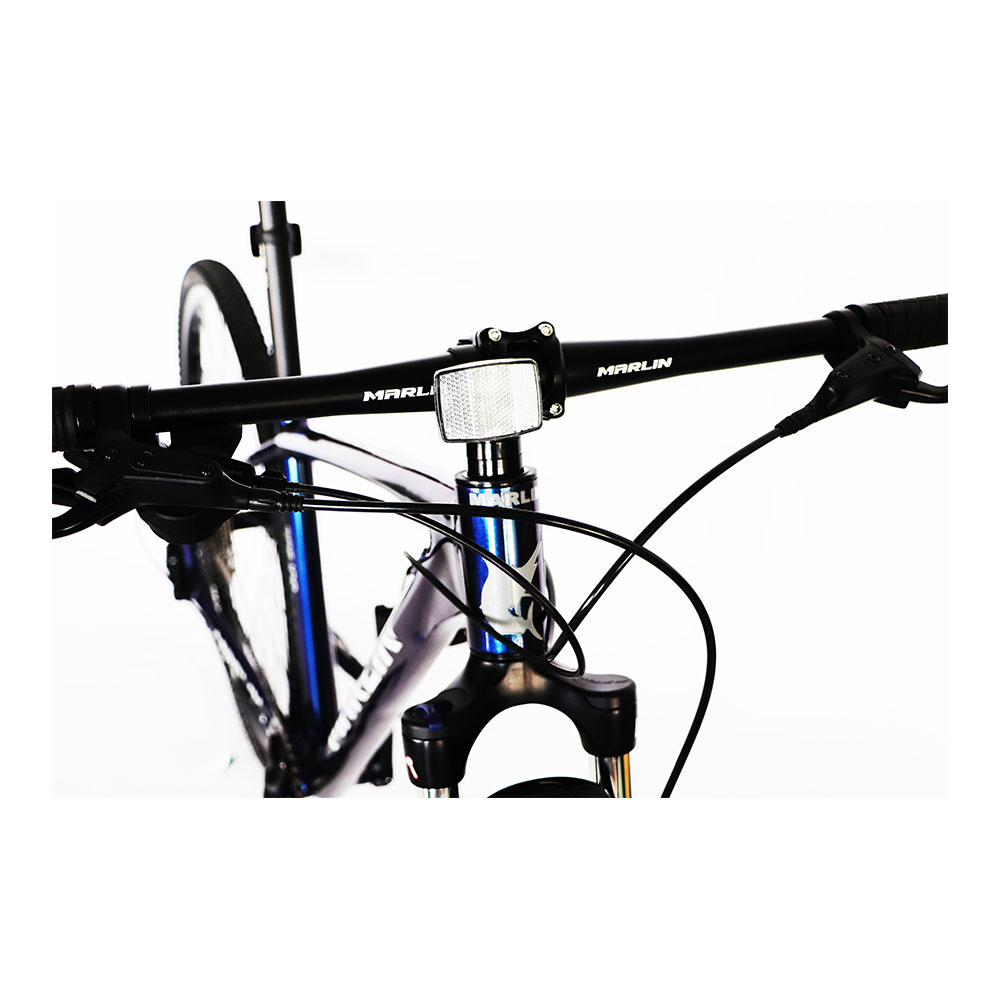

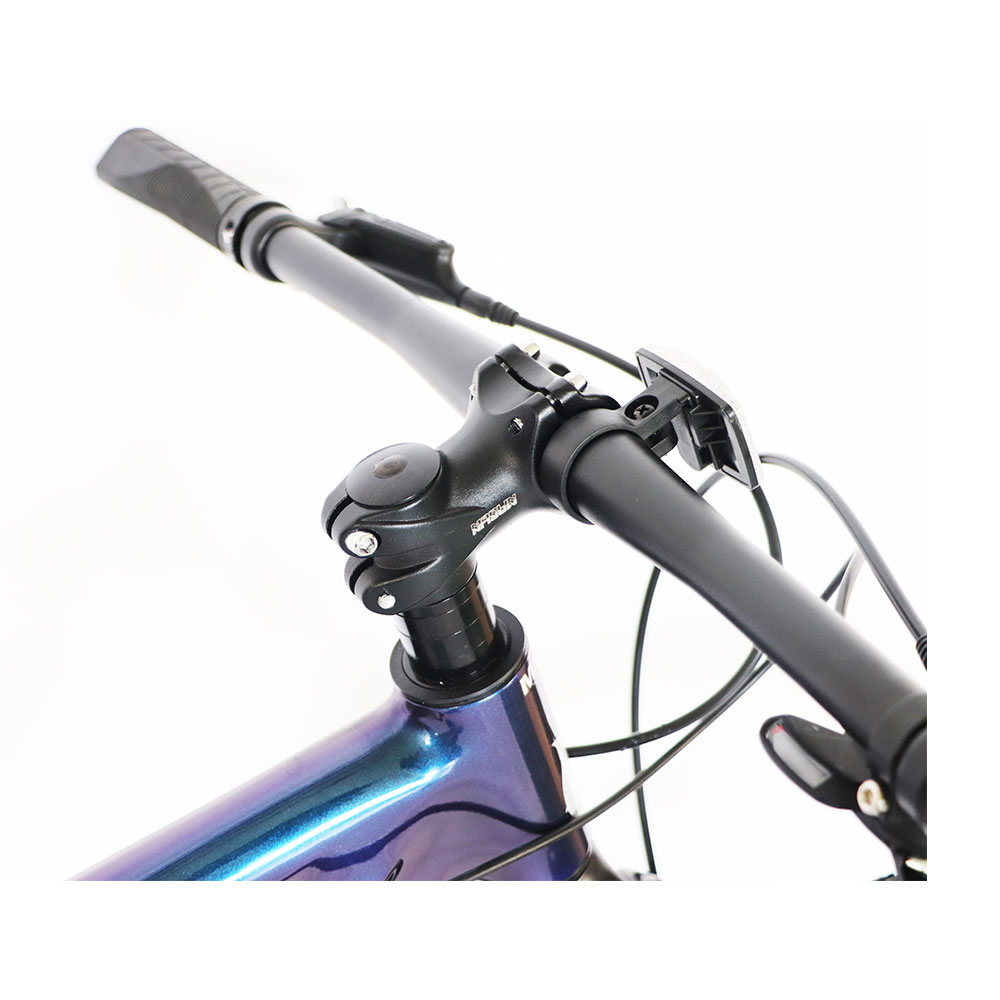

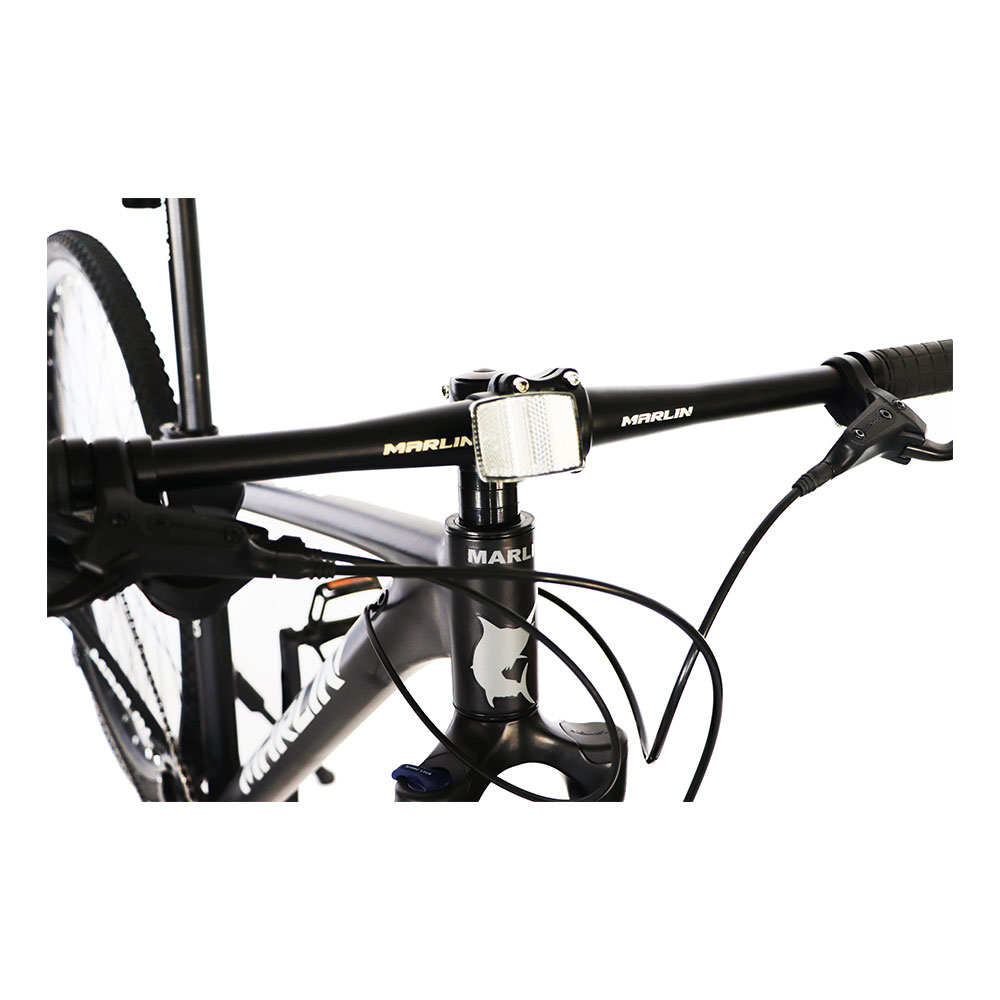

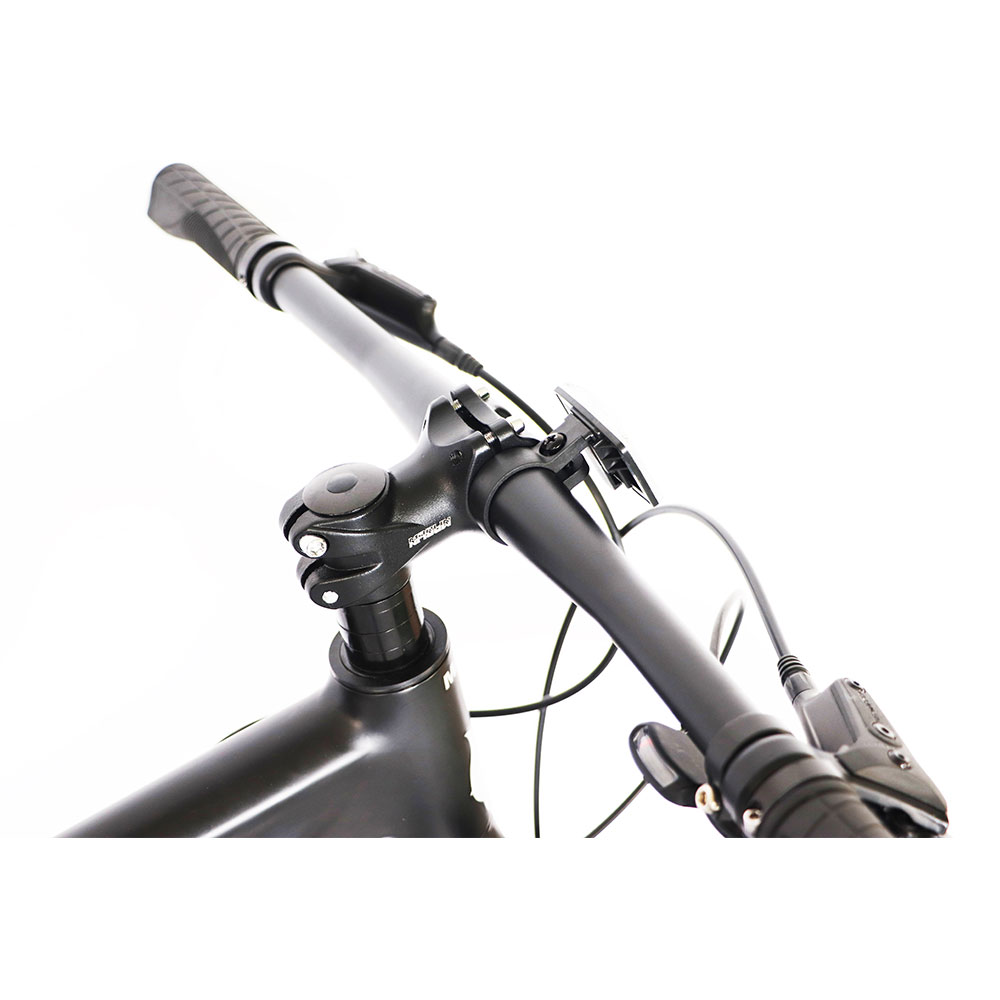

- Handlebar – Alloy31.8mm, 20mm rise with 680mm(S,M,L) and 720mm(XL)
- Headset – Neco thread-less integrated headset

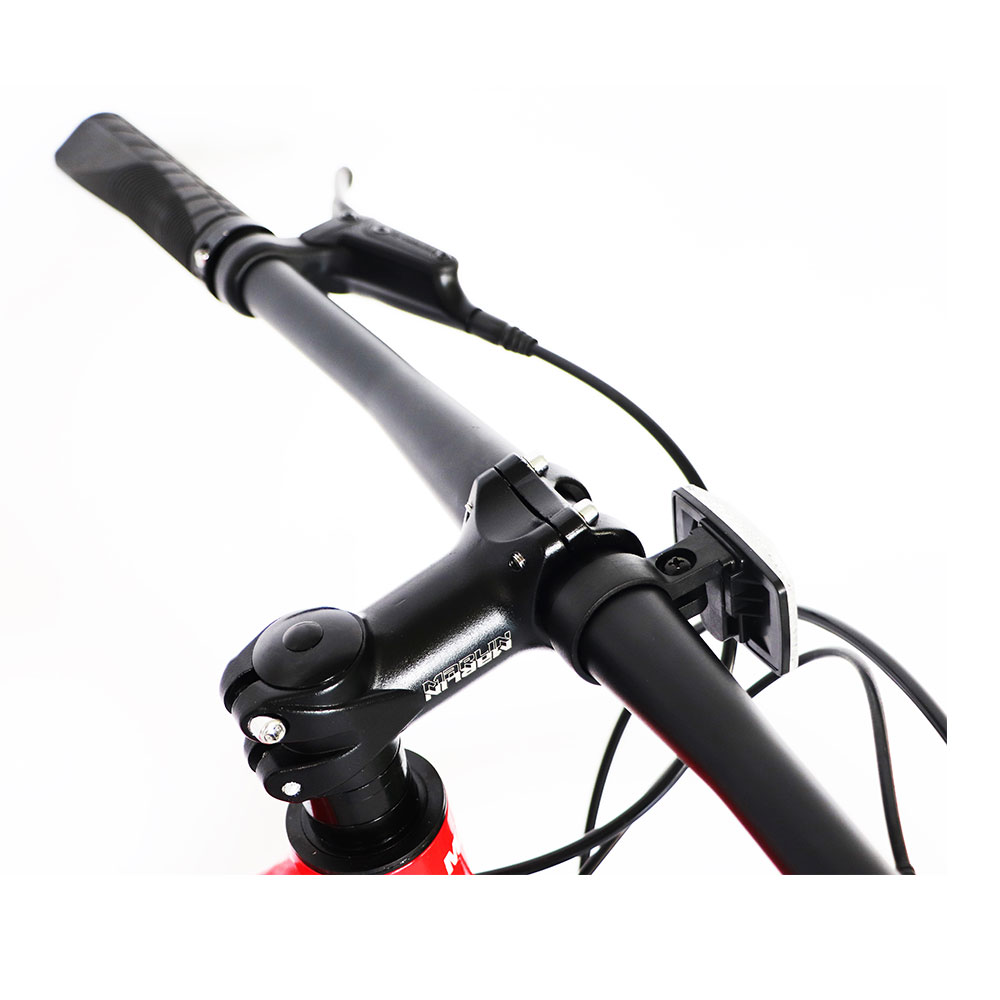

- Stem: Alloy Stem with 7°rise, 60mm length (S, M) / 80mm (L, XL)
- Grips – Ergonomic lock-on grips
Wheel & Tire
- Rims – Double wall alloy rims 700C*40x32H with 3M reflective sticker
- Wheel Size – 700C
- Tire – KENDA K1083A 700C*40C
- F/R Hub – Alloy Sealed Bearing hubs with alloy quick release
- Spokes – High Carbon Steel
Brake
- Brake Lever – Tektro M275
- Brake Caliper – Tektro M275 F/R Hydraulic disc brakes
- Rotor – Tektro, 160mm rotor disc, F/R
Accessories
- Rear kickstand
- Tool Kit
- Reflectors
Other
- Weight – 14 kilograms
- Ideal Height – S(160-170cm), M(165-175cm), L(170-180cm), XL(180-190cm)
- Max Weight – 125 kilograms (including bike weight)
Specification
Frameset
Drivetrain
Cockpit
Wheel & Tire
Brake
Accessories
Other
- Weight – 14 kilograms
- Ideal Height – S(160-170cm), M(165-175cm), L(170-180cm), XL(180-190cm)
- Max Weight – 125 kilograms (including bike weight)
Geometry & Size
| S | M | L | XL | |
|---|---|---|---|---|
| Height | 160-171 (cm) 63-67 (inch) | 168-173 (cm) 66-68 (inch) | 174-178 (cm) 68-70 (inch) | 179-186 (cm) 70-72 (inch) |
| Seat Tube Length(A) | 400 (cm) 15.75 (inch) | 432 (cm) 16.97 (inch) | 417 (cm) 18.5 (inch) | 516 (cm) 20.31 (inch) |
| Seat Tube Angle (B) | 74 (cm) 2.91 (inch) | 74 (cm) 2.91 (inch) | 74 (cm) 2.91 (inch) | 74 (cm) 2.91 (inch) |
| Effective Seat Tube Angle (C) | 74 (cm) 2.91 (inch) | 74 (cm) 2.91 (inch) | 74 (cm) 2.91 (inch) | 74 (cm) 2.91 (inch) |
| Head Tube Length (D) | 100 (cm) 3.94 (inch) | 100 (cm) 3.94 (inch) | 110 (cm) 4.33 (inch) | 110 (cm) 4.33 (inch) |
| Head Tube Angle (E) | 71 (cm) 2.8 (inch) | 71 (cm) 2.8 (inch) | 71 (cm) 2.8 (inch) | 71 (cm) 2.8 (inch) |
| Effective Top Tube (F) | 558 (cm) 21.97 (inch) | 588 (cm) 11.34 (inch) | 616 (cm) 24.25 (inch) | 641 (cm) 25.24 (inch) |
| Bb Height (G) | 280.1 (cm) 11.03 (inch) | 280.1 (cm) 11.03 (inch) | 280.1 (cm) 11.03 (inch) | 280.1 (cm) 11.03 (inch) |
| Bb Offset (H) | 70 (cm) 2.6 (inch) | 70 (cm) 2.6 (inch) | 70 (cm) 2.6 (inch) | 70 (cm) 2.6 (inch) |
| Chainstay Length (I) | 440 (cm) 17.32 (inch) | 440 (cm) 17.32 (inch) | 440 (cm) 17.32 (inch) | 440 (cm) 17.32 (inch) |
| Chainstay Length (I) | 1043.12 (cm) 41.07 (inch) | 1073.12 (cm) 42.25 (inch) | 1101.26 (cm) 43.36 (inch) | 1126.26 (cm) 44.34 (inch) |
| Frame Reach (K) | 385 (cm) 15.16 (inch) | 415 (cm) 16.34 (inch) | 440 (cm) 17.32 (inch) | 465 (cm) 18.31 (inch) |
| Frame Stack (L) | 602.7 (cm) 23.73 (inch) | 602.7 (cm) 23.73 (inch) | 612.2 (cm) 24.10 (inch) | 612.2 (cm) 24.10 (inch) |
| Standover Height (M) | 688.2 (cm) 27.09 (inch) | 711.8 (cm) 28.02 (inch) | 744.7 (cm) 29.32 (inch) | 780.6 (cm) 30.73 (inch) |
