Specifications

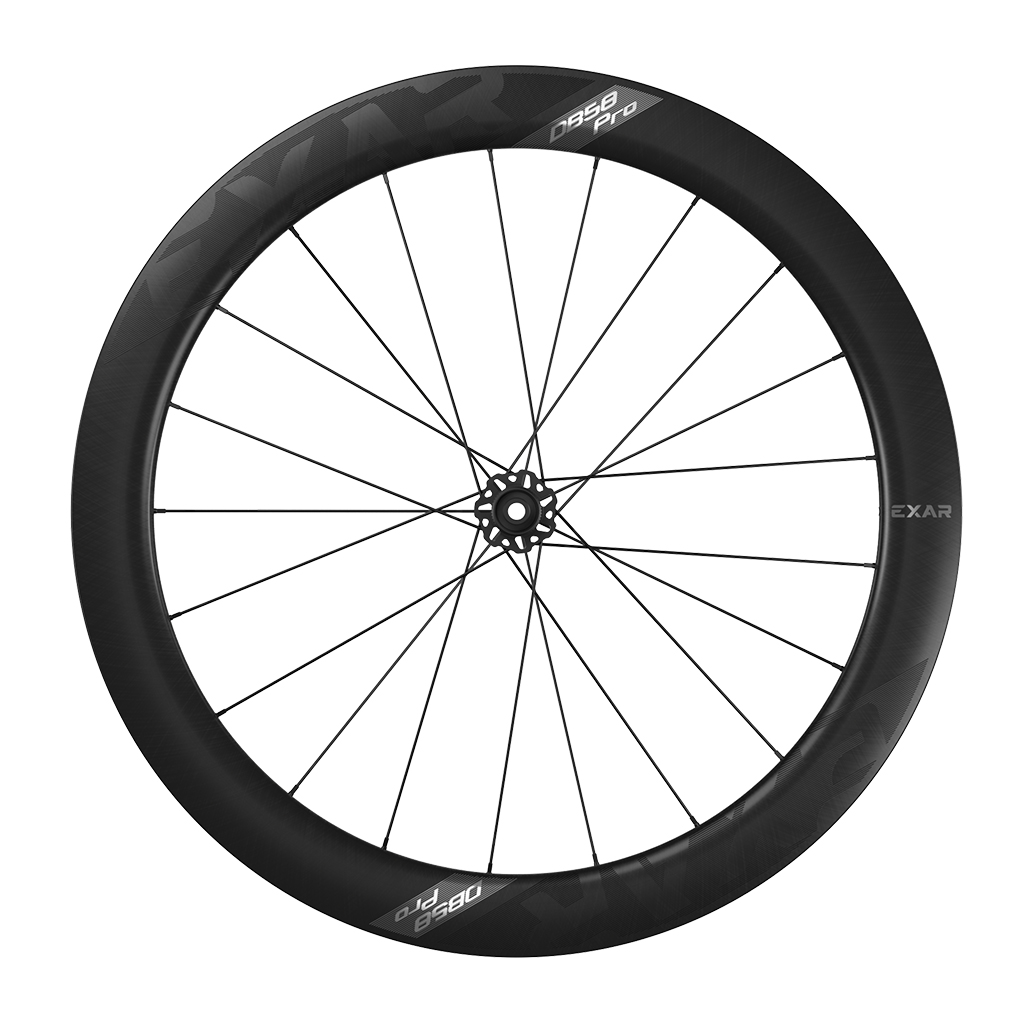

- Product Name: EXAR Pro Series 2025 Carbon Wheels
- Model: Pro DB58
- Brake: Disc Brake (Centrelock)
- Rim Height: 58mm
- External Rim Width: 27mm
- Internal Rim Width: 20mm
- Rim Material: HI-MOD Carbon Fiber
- Spoke: Pillar Wing21
- Front Wheel Spoke Tension: 100kgf±10%
- Rear Wheel Spoke Tension: Drive Side 120kgf±10%, Non-drive Side 110kgf±10%
- Front Wheel Spoke Lacing: 21H 2:1, Brake Side×2, Non-brake Side Radial Lacing
- Rear Wheel Spoke Lacing: 21H, 2:1, Drive Side×2, Brake Side Radial Lacing
- Ratchet: 36T (Compatible with DT System. Replaceable Ratchet with Different Tooth Amount)
- Frame Spacing: 100/142mm thru-axle (100/135mm quick release available separately)
- Freehub Standard: Shimano 11-speed (Campagnolo N3W and Sram XDR Freehubs are available separately)
- Compatible Cassette: SHIMANO 8-12 speed, SRAM 8-12 speed (Available separately for XDR cassette body for 12-speed), Campagnolo 8-13s (require separate N3W freehub)
- Compatible Tire Type: Clincher Tire, Tubeless Tire
- Maximum Tire Pressure: Clincher tire: 110psi for 28c, 100psi for 30c, 90psi for 32c // Tubeless tire: 100psi for 28c, 90psi for 30c, 80psi for 32c // Clincher tire 120psi for 25cTubeless tire 110psi for 25c
- Compatible Tire Width: Compatible with 25c Tire and Above, Suggested Tire Width is 28c – 32c
- Weight: 1500g ±3%
