Specifications
| Category | Specification |
| Platform | Quick CX |
| Model Name | Quick CX 3 |
| Model Code | C31035U |

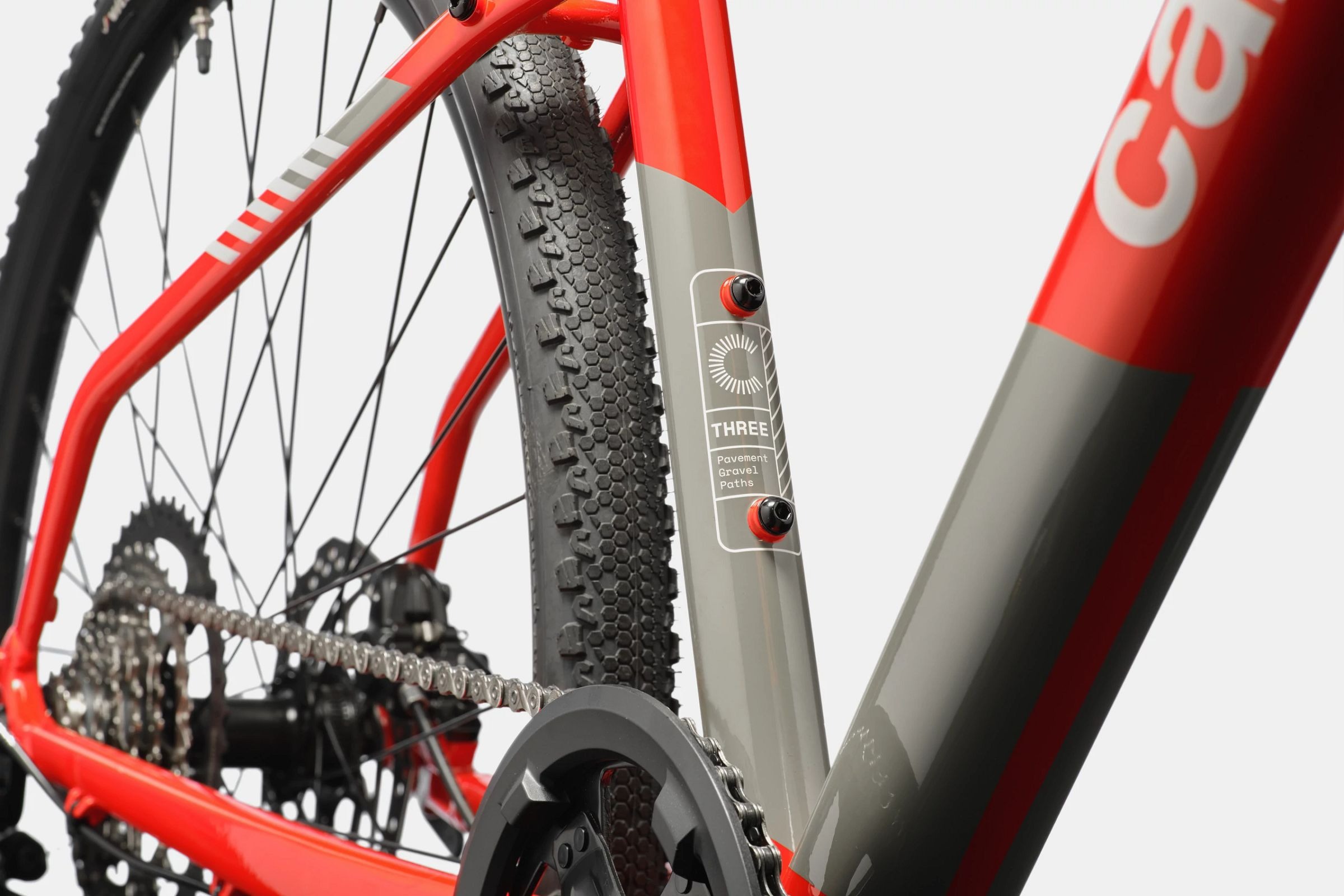

| Frame |
Quick CX, SmartForm C3 Alloy, tapered head tube, Straightshot hidden cable routing, post mount disc, rack/fender mounts
|
| Fork |
Suntour NEX-E25, 50mm travel, 1-1/8″ alloy steerer, coil, hydraulic lockout, custom crown
|
| Headset |
FSA Orbit, Semi-integrated, 1-1/2″-1-1/8″
|

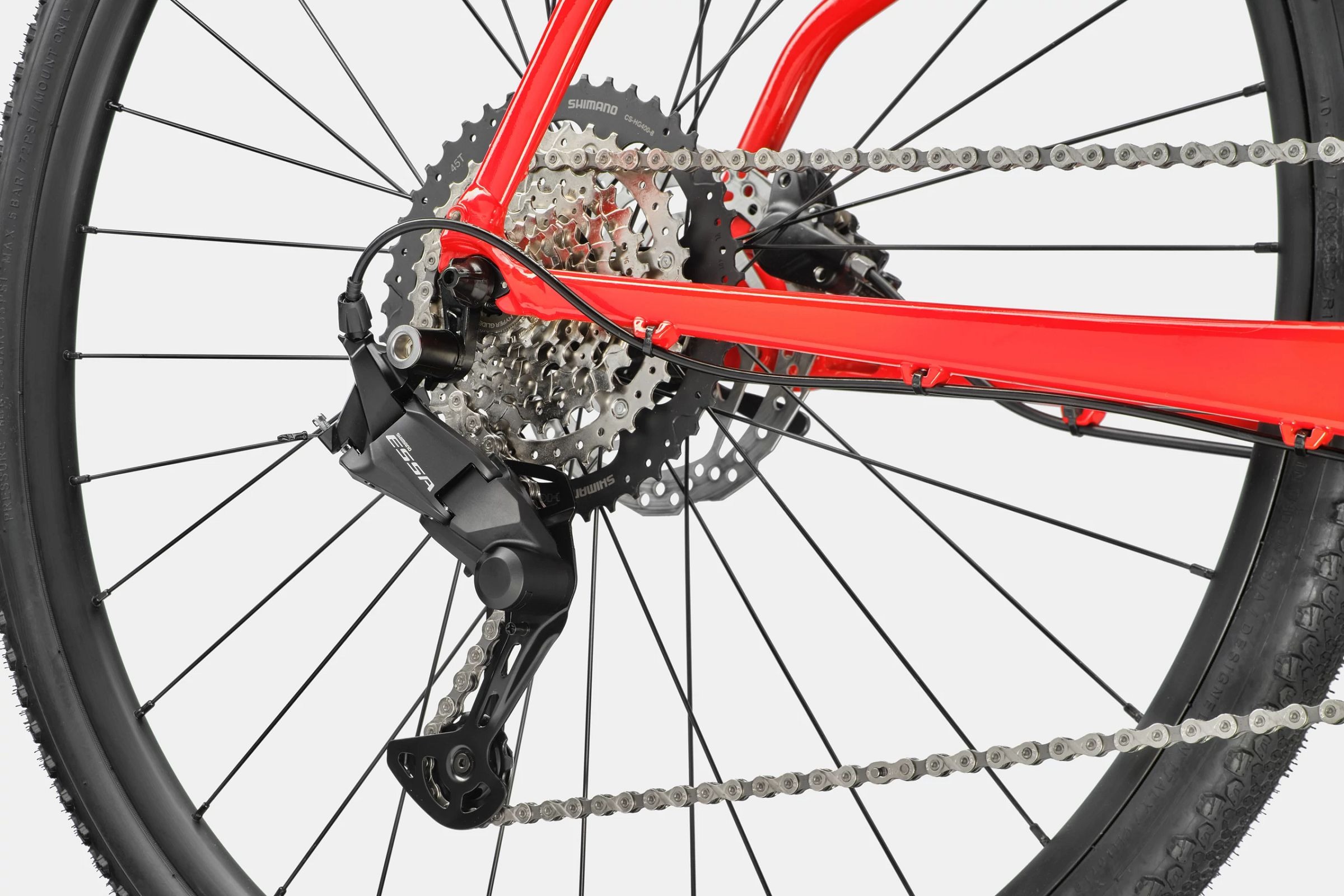

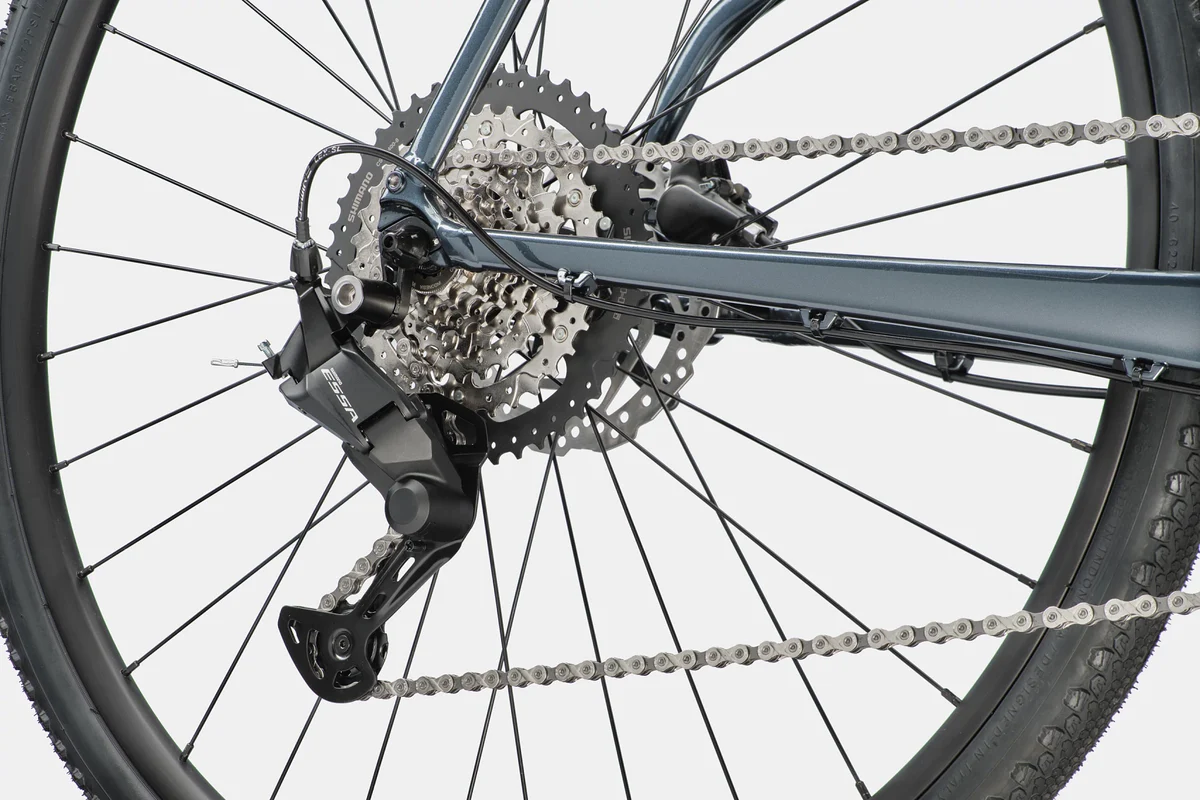

| Rear Derailleur |
Shimano Essa U2000
|
| Shifters |
Shimano ST-EF505, 8-speed
|
| Chain |
KMC X8, 8-speed
|
| Crank |
Shimano Essa, 40T
|
| Rear Cogs |
Shimano HG400, 11-45, 8-speed
|
| Bottom Bracket |
Shimano UN101
|
| Brakes |
Shimano MT200 hydraulic disc, 160/160mm rotors
|
| Brake Levers |
Shimano MT201 hydraulic disc
|
| Front Hub |
Shimano QC-300, QR
|
| Rear Hub |
Shimano QC-300, QR
|
| Rims |
DC 4.0, double wall w/eyelet, 32h
|
| Spokes |
Stainless Steel, 14g
|
| Tire Size | 40 |
| Wheel Size | 700c |
| Tires |
Vittoria Terreno Dry, 700×40c
|
| Front Tire |
Vittoria Terreno Dry, 700×40c
|
| Rear Tire |
Vittoria Terreno Dry, 700×40c
|

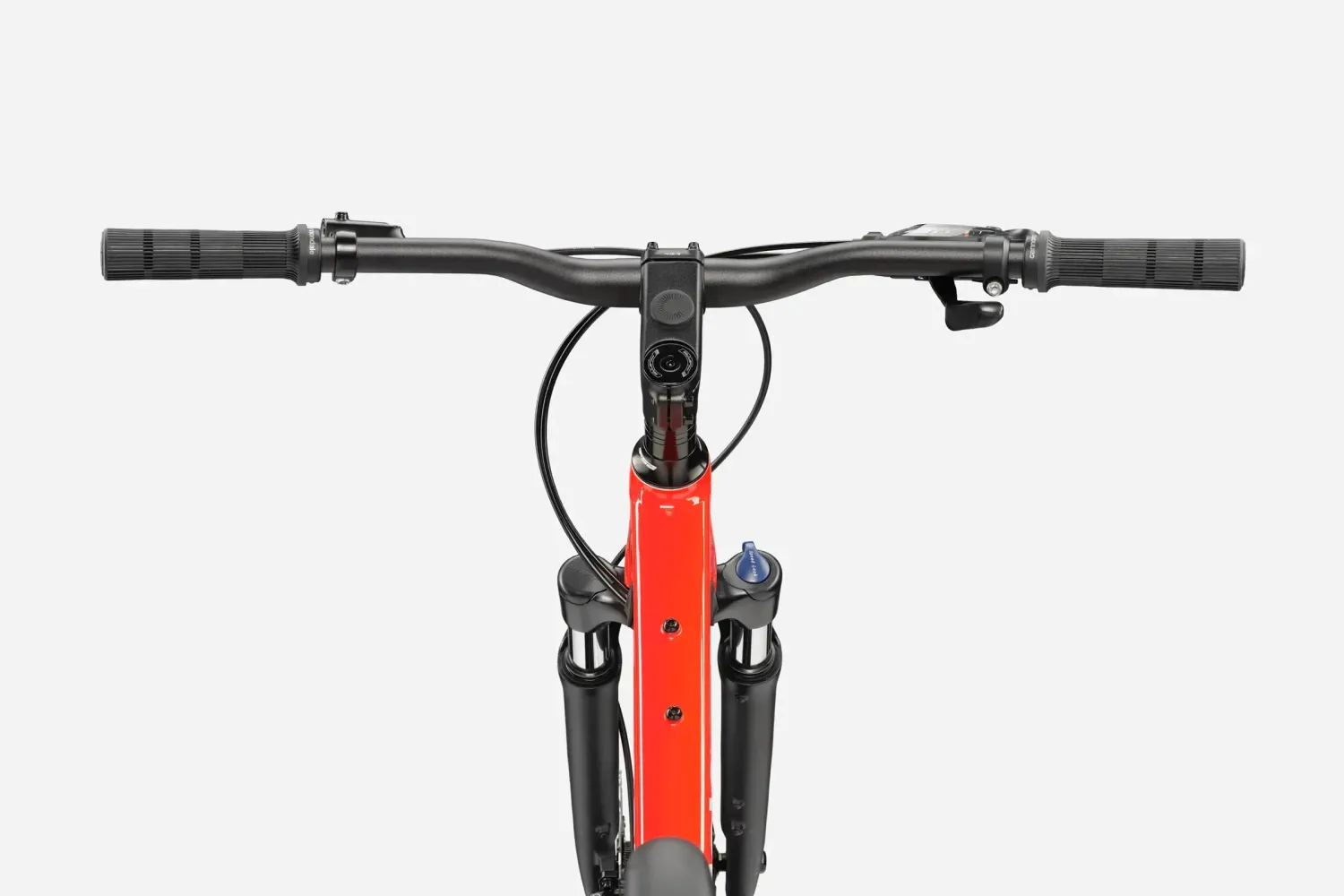

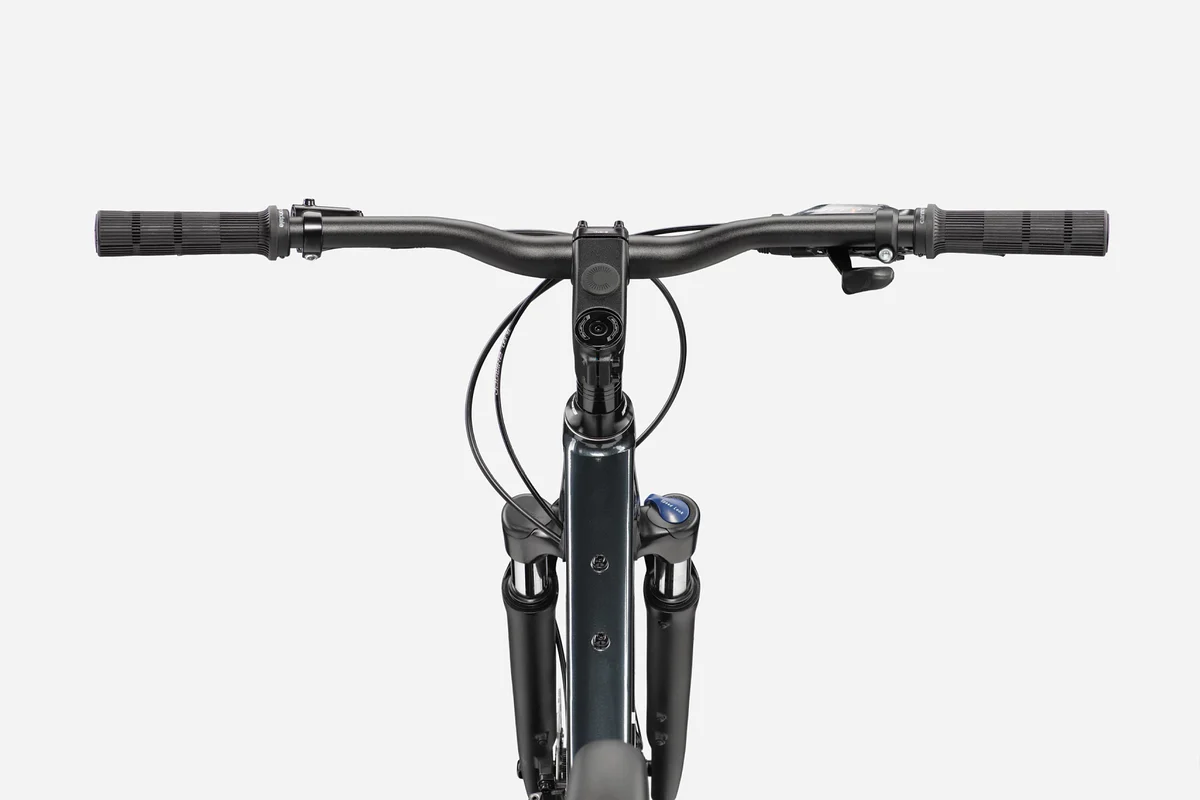

| Handlebar |
Cannondale Riser, 6061 Alloy, 25mm rise, 8° sweep, 6° rise, 700mm
|
| Stem |
Cannondale 3 w/ Intellimount, Alloy, 31.8mm clamp, +6°, w/ SP Connect SPC+ Stem Mount
|
| Grips |
Cannondale TaperRidge
|

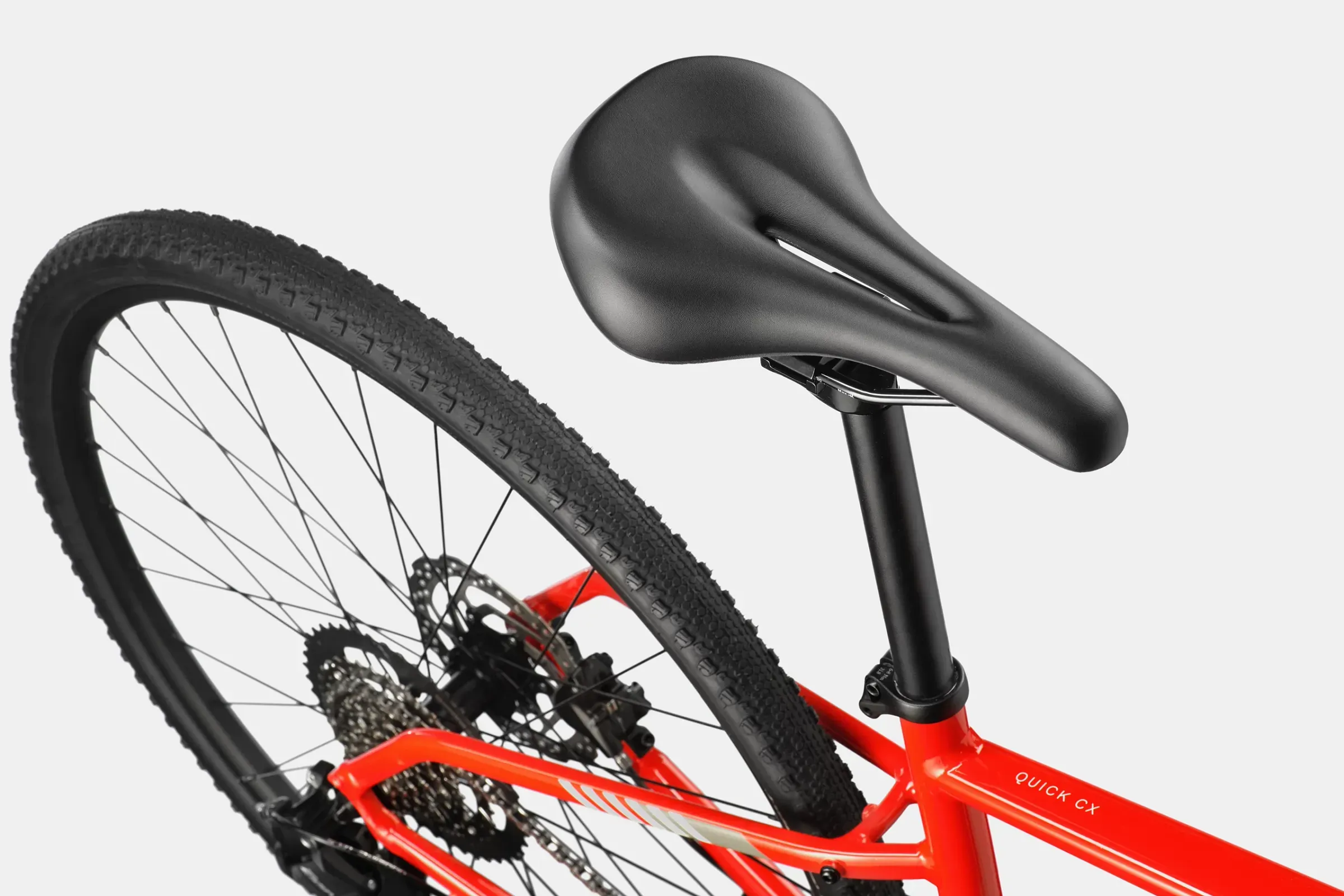

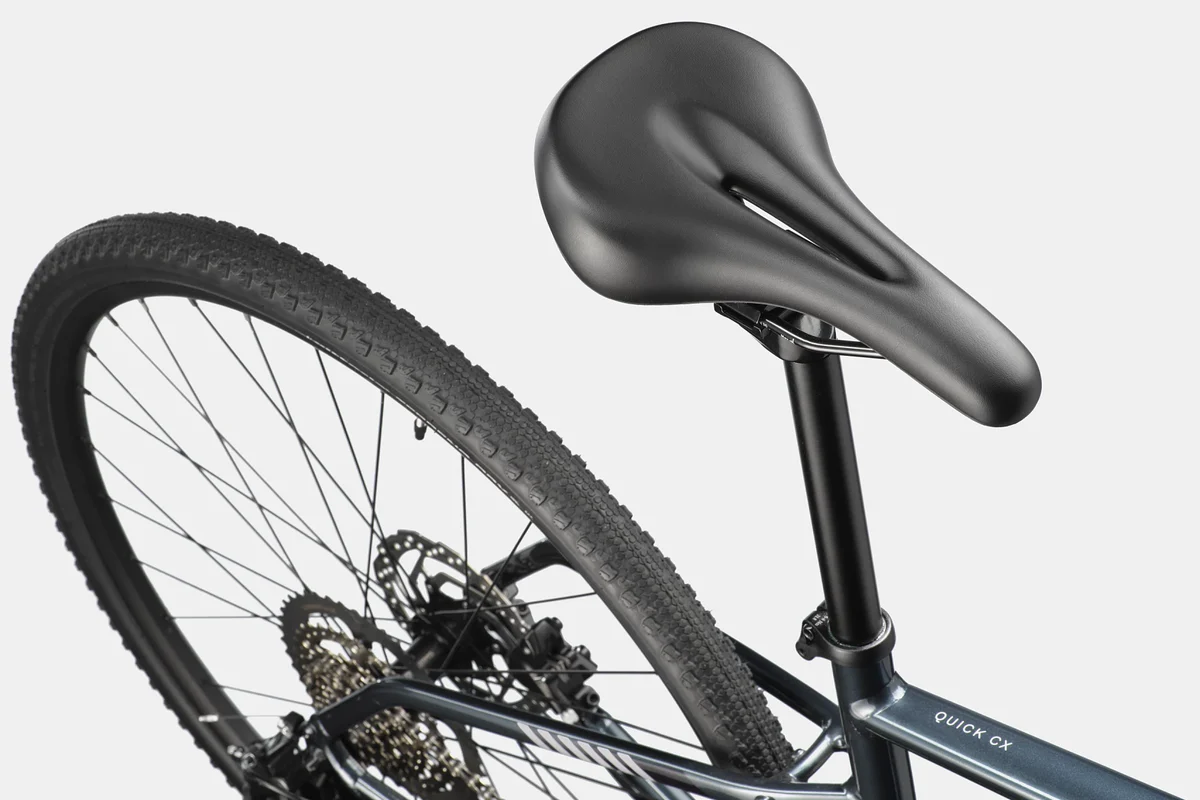

| Saddle |
Cannondale Fitness Ergo Double Density
|
| Seatpost |
6061 Alloy, 27.2×350mm
|
GEOMETRY & SIZE CHART
| XS | S | M | L | XL |
| 147 – 160 | 157 -170 | 165 – 177 | 175 – 187 | 182 – 195 |
