Specifications
- Frame – 6061 Aluminum, Triple Butted Frame with smooth weld and tapered headtube, Internal Cable Routing, 12x148mm Thru-Axle, 73mm Threaded BB, dropper post ready

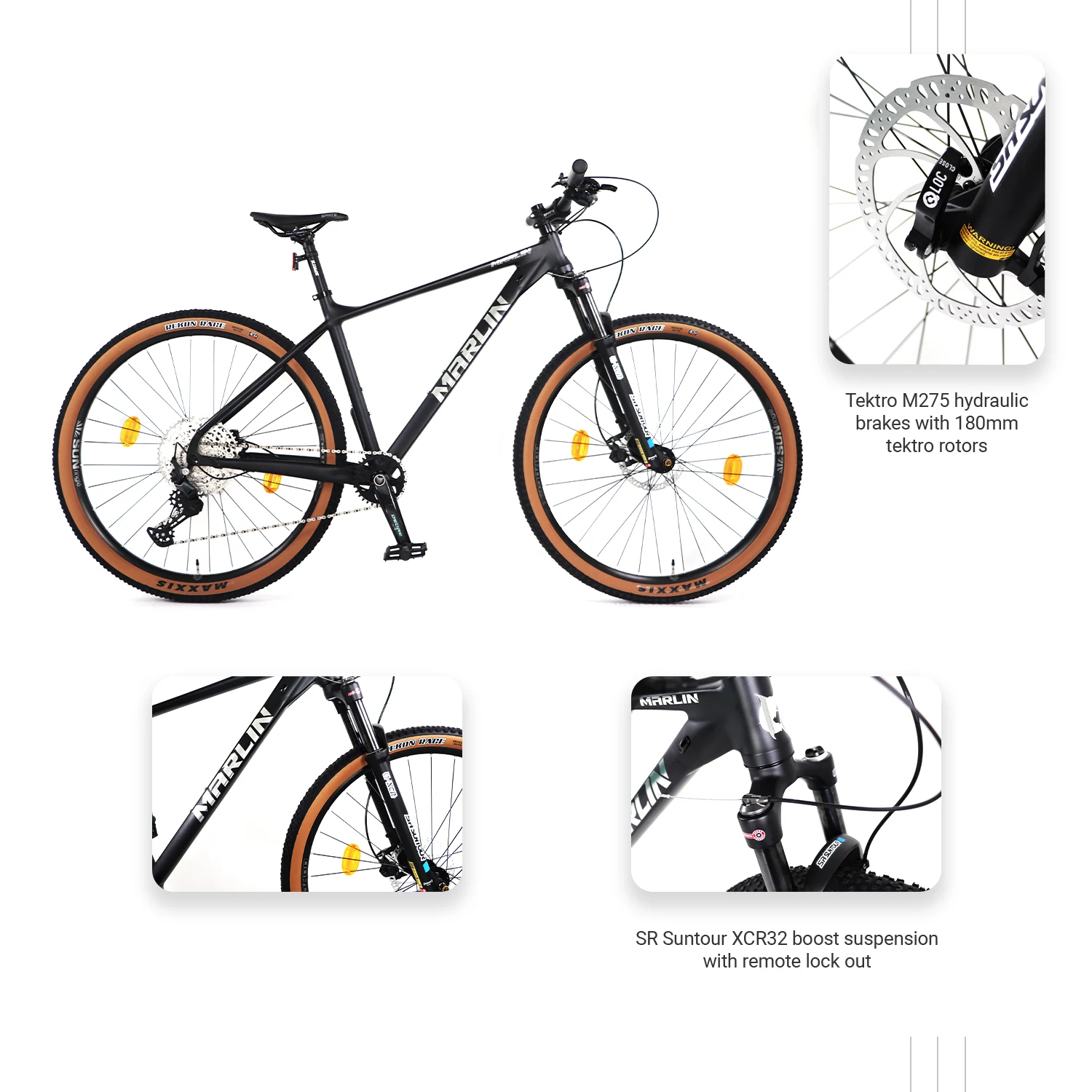

- Fork – SR Suntour XCR32-Boost-Air, 100MM travel with remote lockout
- Frame Colour – Matt Black
- Decal – Water Decal (Mirror)
Drivetrain

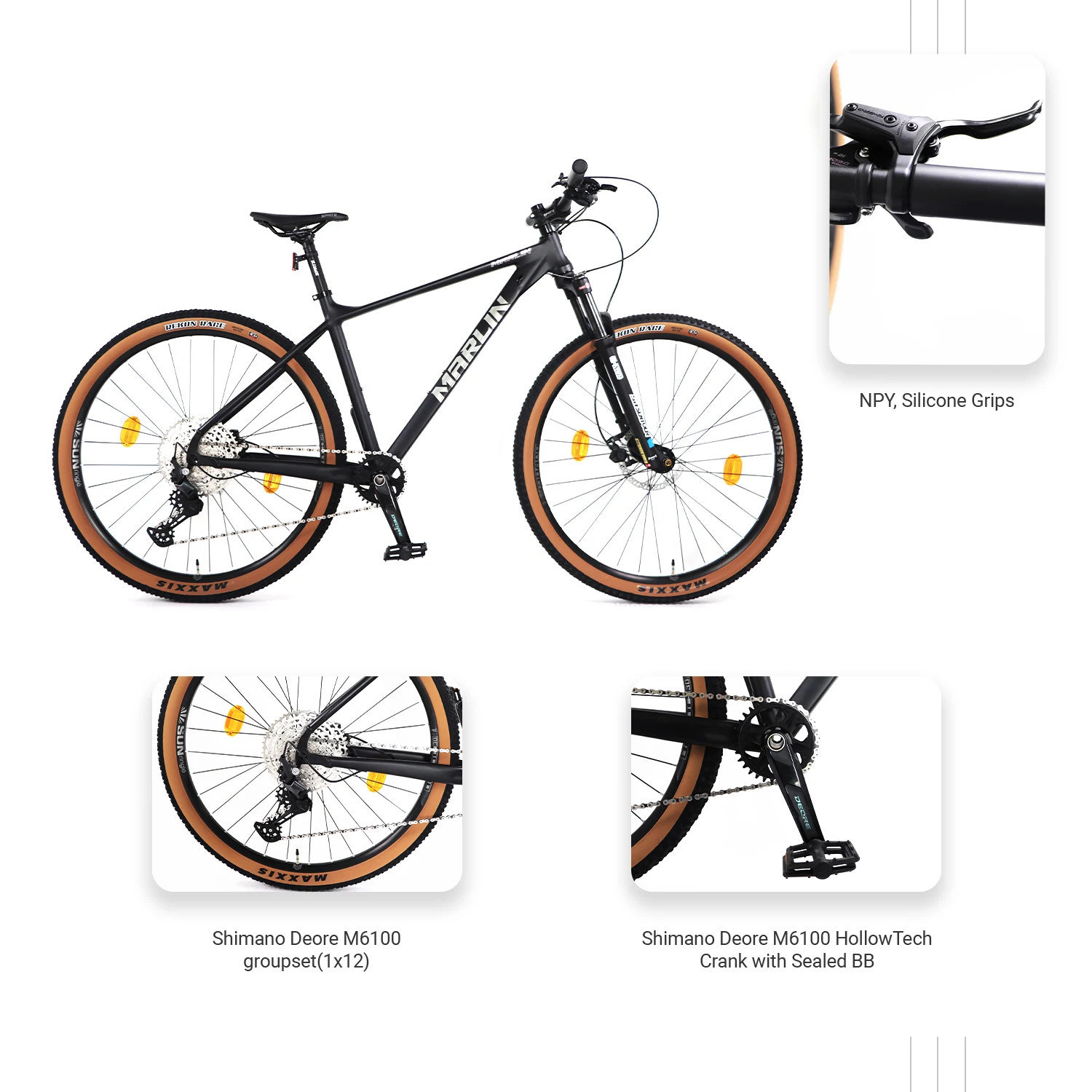

- Shifter – SHIMANO DEORE SL-M6100-R, 1×12-SPEED TRIGGER
- Crank – SHIMANO DEORE 2-PIECE CRANKSET,148 mm O.L.D. Frames 1×12-speed
- Cassette – SHIMANO DEORE CS-M6100-12, Microspline
- Rear Derailleur – SHIMANO RD-M6100-SGS DEORE
- Bottom Bracket – Model: BB52, 73mm, Shimano Deore M6100 Series
- Chain – KMC X-12
- Pedals – Nylon, VP-536
Cockpit
- Saddle – Spate, Light weight Saddle
- Seat Post – Alloy, 30.4×2.4Tx350mm with bolt
- Handlebar – Alloy31.8mm, 10mm rise, 760mm length
- Headset – Sealed bearing headset, 1-1/8” 44×55
- Stem – Alloy Stem with 7°rise/drop, 60mm length
- Grips – NPY, Silicone Grips
Wheel & Tire

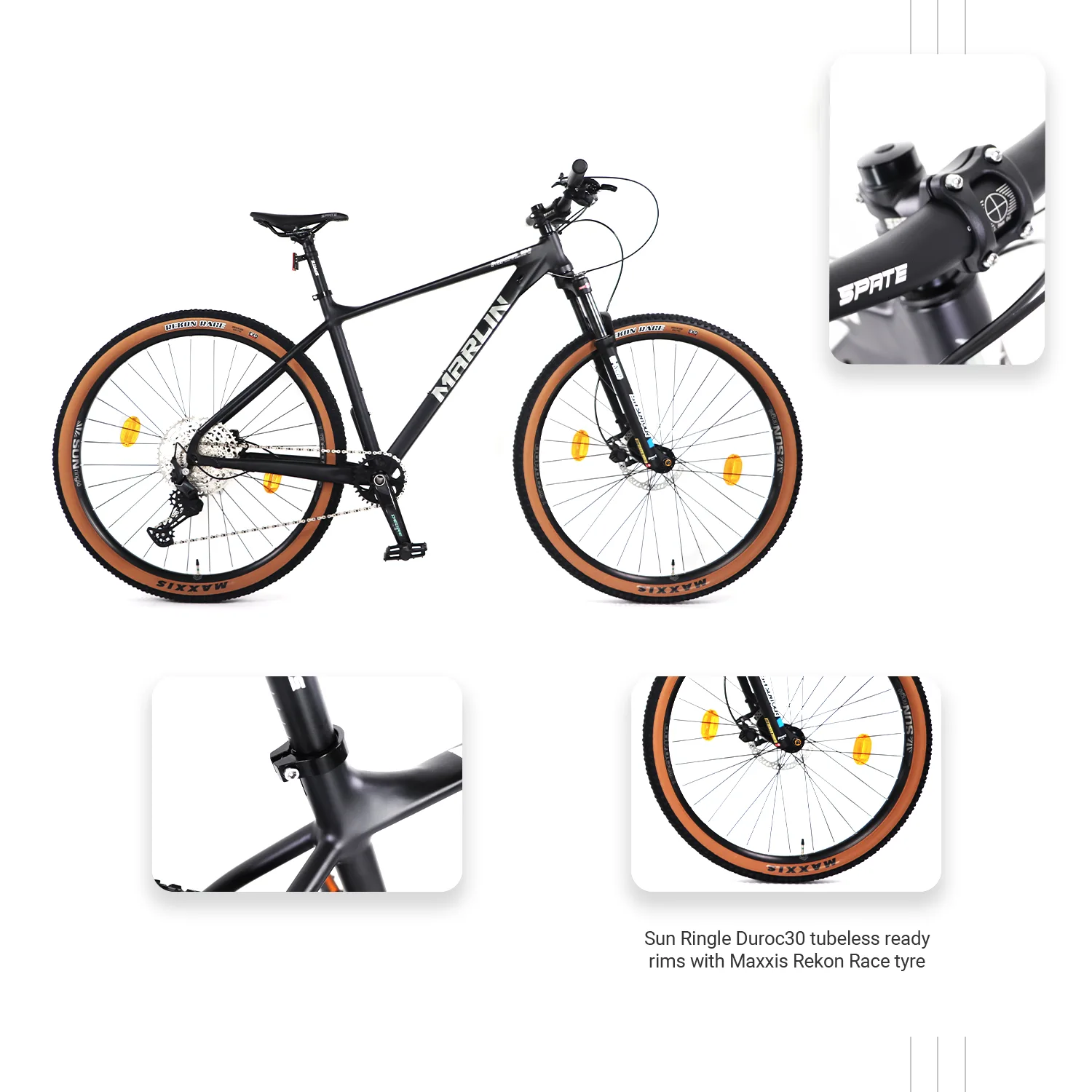

- Rims – Sunringle Duroc30, tubeless ready, 32H
- Wheel Size – 29 inch
- Tire & Tube – Maxxis Rekon Race, 29×2.25” EXO (Tan Wall), 60TPI
- F/R Hub – Solon DH952TRM BOOST, 4 Sealed bearing, 6 pawls thru axle Rear Hub, Solon DH908TF BOOST front hub
- Spokes – Stainless Steel, G14
Brake
- Brake Lever – Tektro HD- M275
- Brake Caliper – Tektro HD-M275 F/R Hydraulic disc brakes
- Rotor – Tektro rotor, 180mm front and 160mm Rear
Accessories
- Reflectors
- Tool Kit
- Chain-stay Protector
Other
- Weight – 13.3 kilograms
- Ideal Height – M(165-176cm), L(175-186cm)
- Max Weight – 130 kilograms (including bike weight)
Geometry & Size
| M | L | |
|---|---|---|
| Height (cm) | 165-176 | 175-186 |
| Seat Tube Length (A) | 432 | 483 |
| Seat Tube Angle (B) | 73 | 73 |
| Effective Seat Tube Angle (C) | 73 | 73 |
| Head Tube Length (D) | 100 | 100 |
| Head Tube Angle (E) | 68.5 | 68.5 |
| Effective Top Tube (F) | 584.6 | 609.6 |
| Bb Height (G) | 308 | 308 |
| Bb Offset (H) | 60 | 60 |
| Chainstay Length (I) | 455 | 455 |
| Wheelbase (J) | 1106.5 | 1131.5 |
| Frame Reach (K) | 398.9 | 423.9 |
| Frame Stack (L) | 607.6 | 607.6 |
| Standover Height (M) | 715.6 | 755.5 |
