Specifications

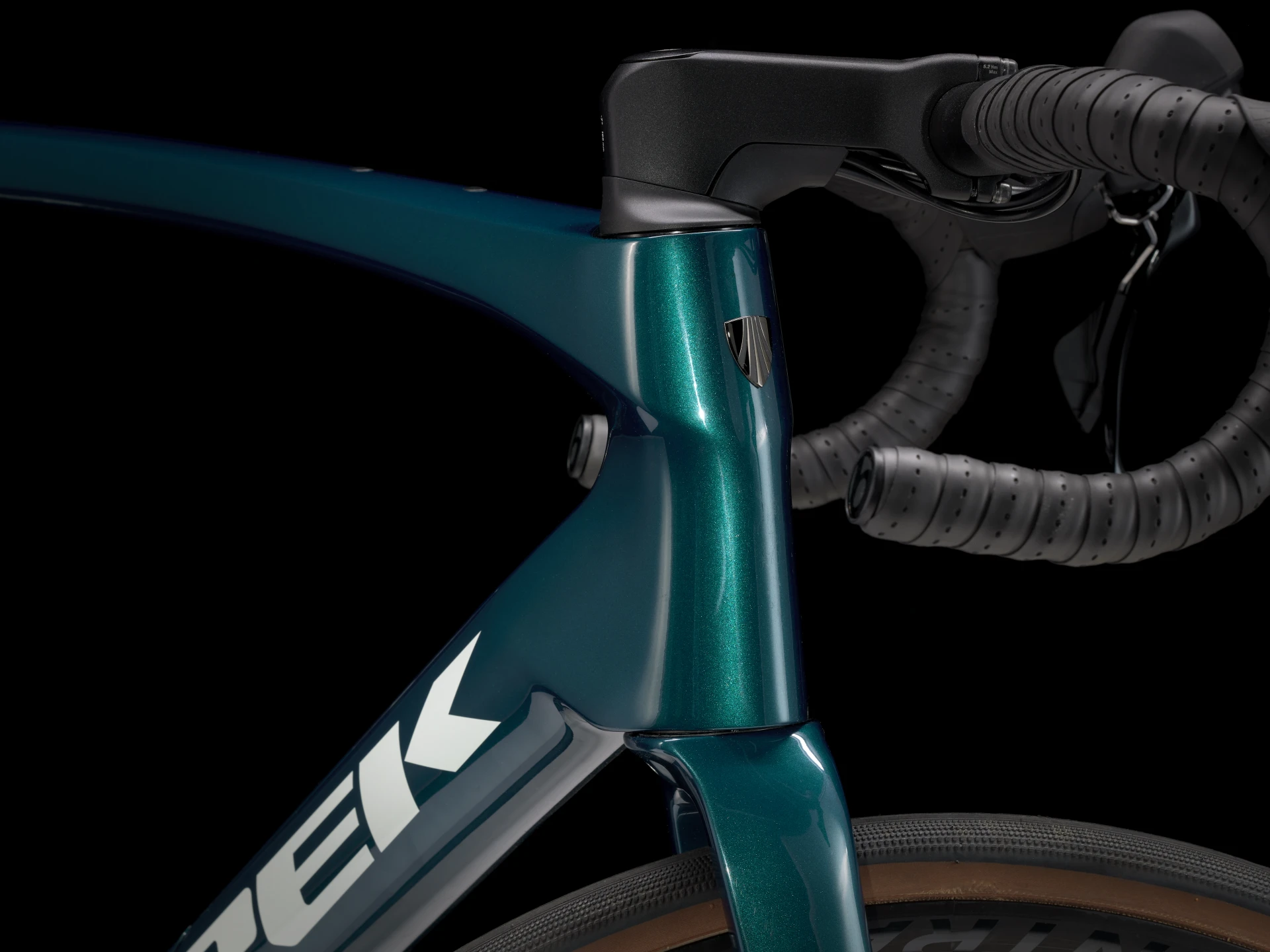

- Frame
-

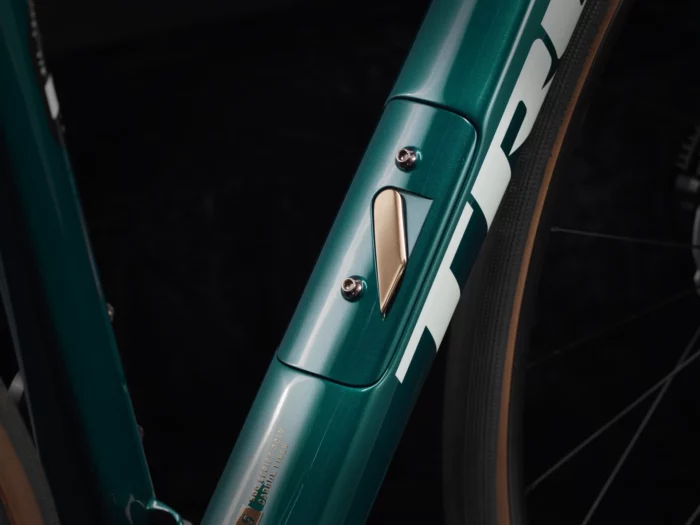

500 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, mudguard mounts, flat mount disc, 142×12 mm thru axle
- Fork
-
Domane SL carbon, tapered carbon steerer, internal brake routing, mudguard mounts, flat-mount disc, 12×100 mm thru axle
- Weight
- 56 – 9.02 kg / 19.89 lbs (with TLR sealant, no tubes)
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
- Shifter
-
Shimano 105 R7120, 12-speed
- Front derailleur
-
Shimano 105 R7100, braze-on, down swing
- Rear derailleur
-
Shimano 105 R7100, 36T max cog
- *Crank
-
Size: 44, 47Shimano 105 R7100, 50/34, 165 mm lengthSize: 50, 52Shimano 105 R7100, 50/34, 170 mm lengthSize: 54, 56Shimano 105 R7100, 50/34, 172.5 mm lengthSize: 58, 60, 62Shimano 105 R7100, 50/34, 175 mm length
- Bottom bracket
-
Praxis, T47 threaded, internal bearing
- Cassette
-
Shimano 105 7101, 11-34, 12-speed
- Chain
-
Shimano SLX M7100, 12-speed
- Max. chainring size
- 1x: 48T, 2x: 52/36
- Hub front
-
Bontrager alloy, sealed bearing, CenterLock disc, 100×12 mm thru axle
- Skewer front
-
Bontrager Switch thru-axle, removable lever
- Hub rear
-
Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142×12 mm thru axle
- Skewer rear
-
Bontrager Switch thru-axle, removable lever
- Rim
-
Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve
- Tyre
-
Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700×32 mm
- Tyre part
-
Bontrager TLR sealant, 180 ml/6 oz
- Rim strip
-
Bontrager TLR
- Max tyre size
- 38mm without mudguards, 35mm with mudguards
- *Saddle
-
Size: 44, 47, 50, 52Verse Short Comp, steel rails, 155 mm widthSize: 54, 56, 58, 60, 62Verse Short Comp, steel rails, 145 mm width

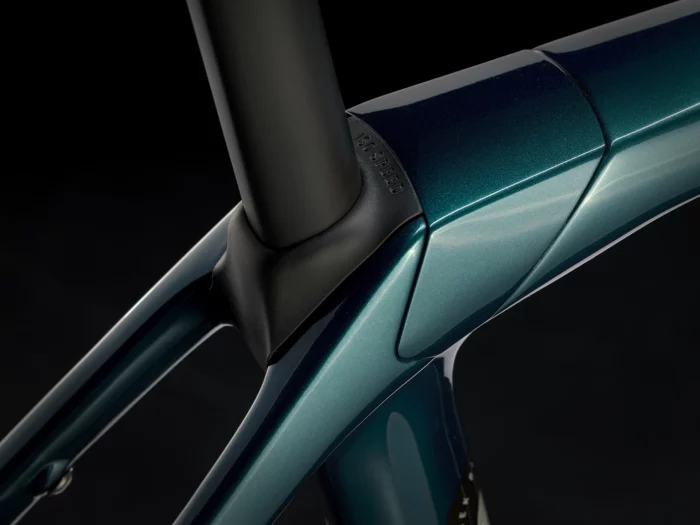

- *Seatpost
-
Size: 44, 47, 50, 52, 54, 56KVF aero carbon seat post, 20 mm offset, 280 mm lengthSize: 58, 60, 62KVF aero carbon seat post, 20 mm offset, 320 mm length

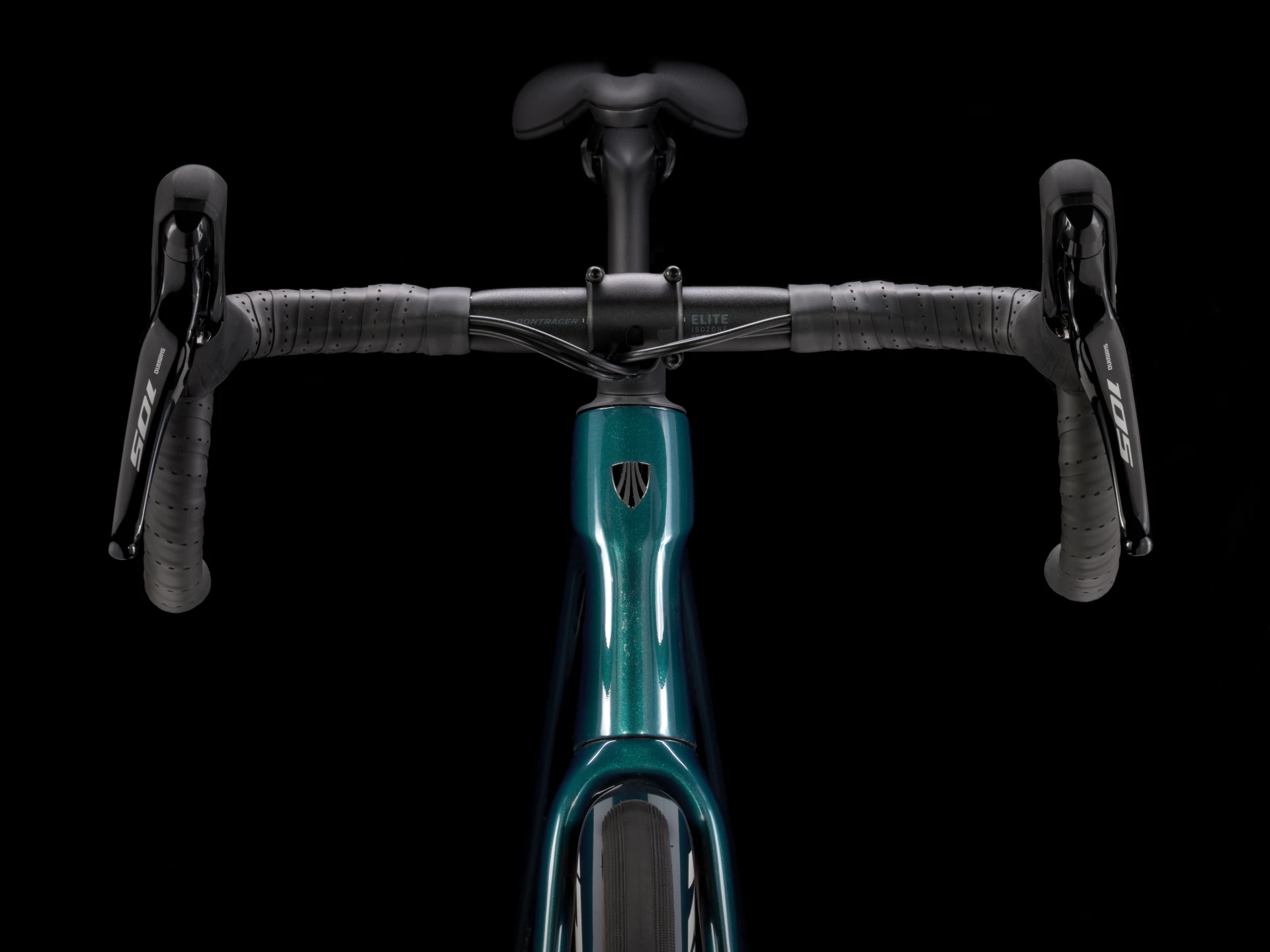

- *Handlebar
-
Size: 44, 47Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 36 cm widthSize: 50Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 38 cm widthSize: 52Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 40 cm widthSize: 54, 56Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 42 cm widthSize: 58, 60, 62Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 44 cm width
- Handlebar tape
-
Bontrager Supertack Perf tape
- *Stem
-
Size: 44Trek RCS Pro, -7-degree, 60 mm lengthSize: 47Trek RCS Pro, -7-degree, 70 mm lengthSize: 50Trek RCS Pro, -7-degree, 80 mm lengthSize: 52, 54Trek RCS Pro, -7-degree, 90 mm lengthSize: 56, 58Trek RCS Pro, -7-degree, 100 mm lengthSize: 60, 62Trek RCS Pro, -7-degree, 110 mm length
- Brake
-
Shimano 105 hydraulic disc
- Brake rotor
-
Shimano RT70, CentreLock, 160 mm
- Rotor size
- Max brake rotor sizes: 160 mm front and rear
- Bag
-
Bontrager BITS Internal Frame Storage Bag
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
