Specifications
Frameset
| Frame | Ultralight 500 Series OCLV Carbon, Ride Tuned performance tube optimisation, tapered head tube, internal routing, DuoTrap S-compatible, flat-mount disc, 142×12 mm thru axle |
|---|---|
| Fork | Émonda SL full carbon, tapered carbon steerer, internal brake routing, flat-mount disc, 12×100 mm thru axle |
Weight
| Weight | 56 – 9.05 kg/19.96 lb (with tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb). |

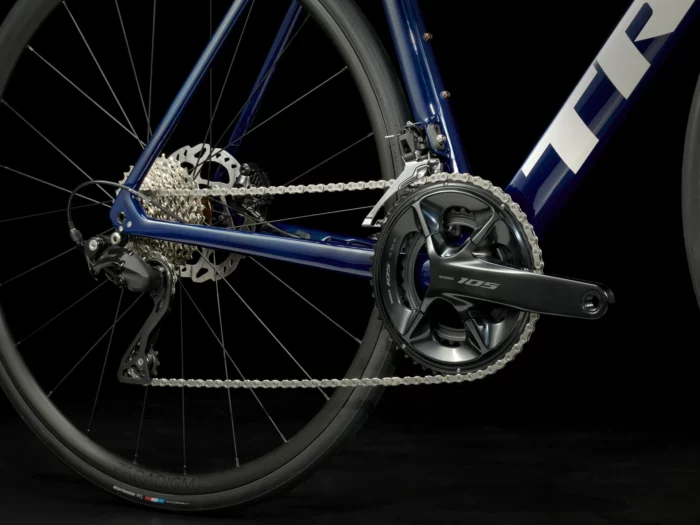

Drivetrain
| Shifter | Shimano 105 R7120, 12-speed |
|---|---|
| Front derailleur | Shimano 105 R7100, braze-on, down swing |
| Rear derailleur | Shimano 105 R7100, 36T max cog |
| *Crank | Size: 50, 52 Shimano 105 R7100, 50/34, 170 mm length |
| Size: 54, 56, 58 Shimano 105 R7100, 50/34, 172.5 mm length |
|
| Bottom bracket | Praxis, T47 threaded, internal bearing |
| Cassette | Shimano 105 7101, 11-34, 12-speed |
| Chain | Shimano SLX M7100, 12-speed |
| Max. chainring size | 1x: 50T, 2x: 53/39 |
Wheels
| Wheel front | Bontrager Paradigm SL TLR rim with CL-712 100x12mm Centerlock Disc hub, 24H, Black spokes and nipples |
|---|---|
| Wheel rear | Bontrager Paradigm SL TLR rim with CL-712 142x12mm Centerlock Disc hub, 24H, Black spokes and nipples |
| Hub front | Bontrager alloy, sealed bearing, CenterLock disc, 100×12 mm thru axle |
| Skewer front | Bontrager Switch thru axle, removable lever |
| Hub rear | Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142×12 mm thru axle |
| Skewer rear | Bontrager Switch thru-axle, removable lever |
| Rim | Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve |
| Spokes | 14 g stainless steel, black |
| Tyre | Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700×28 mm |
| Max tyre size | 28 mm |
Components
| *Saddle | Size: 50, 52 Verse Short Comp, steel rails, 155 mm width |
|---|---|
| Size: 54, 56, 58 Verse Short Comp, steel rails, 145 mm width |
|
| *Seatpost | Size: 50, 52, 54 Bontrager alloy seat mast cap, 10 mm offset, short length |
| Size: 56, 58 Bontrager alloy seat mast cap, 10 mm offset, tall length |
|
| *Handlebar | Size: 50 Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 38 cm control width, 42 cm drop width |
| Size: 52 Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 40 cm control width, 44 cm drop width |
|
| Size: 54, 56, 58 Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 42 cm control width, 46 cm drop width |
|
| Handlebar tape | Bontrager Supertack Perf tape |
| *Stem | Size: 50 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length |
| Size: 52, 54 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length |
|
| Size: 56 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length |
|
| Size: 58 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length |
|

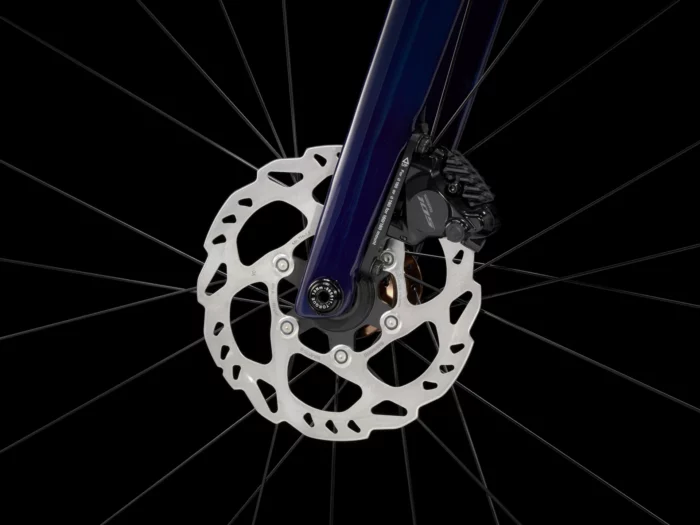

| Brake | Shimano 105 hydraulic disc |
| Brake rotor | Shimano RT70, CentreLock, 160 mm |
| Rotor size | Max brake rotor sizes: 160 mm front and rear |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
